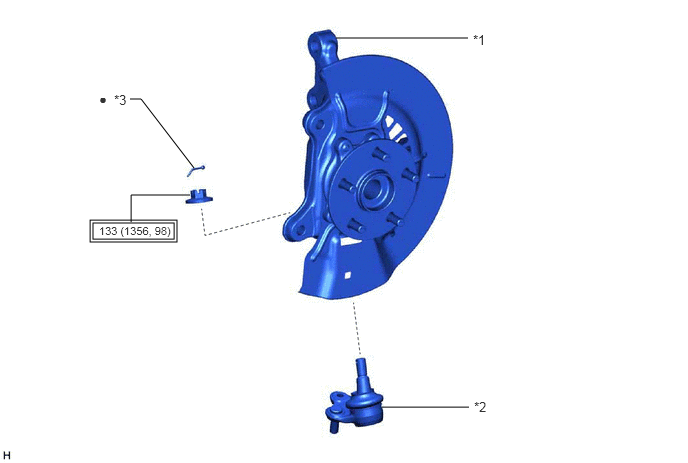

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT AXLE ASSEMBLY | *2 | FRONT LOWER BALL JOINT ASSEMBLY |
| *3 | COTTER PIN | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
