On-Vehicle Inspection [12/2019 - ]: Procedure

  1. INSPECT FRONT LOWER BALL JOINT ASSEMBLY
    1. Check for looseness.

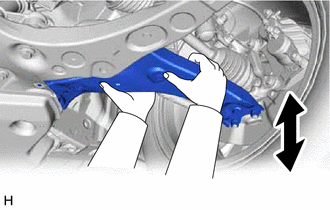

      GTY906588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Lift up the vehicle.
      2. Move the front lower No. 1 suspension arm sub-assembly up and down by hand with a force of 294 N (30 kgf) or more to check that there is no looseness at the front lower ball joint assembly.

        HINT:

        If the front lower ball joint assembly is loose, replace it with a new one.
