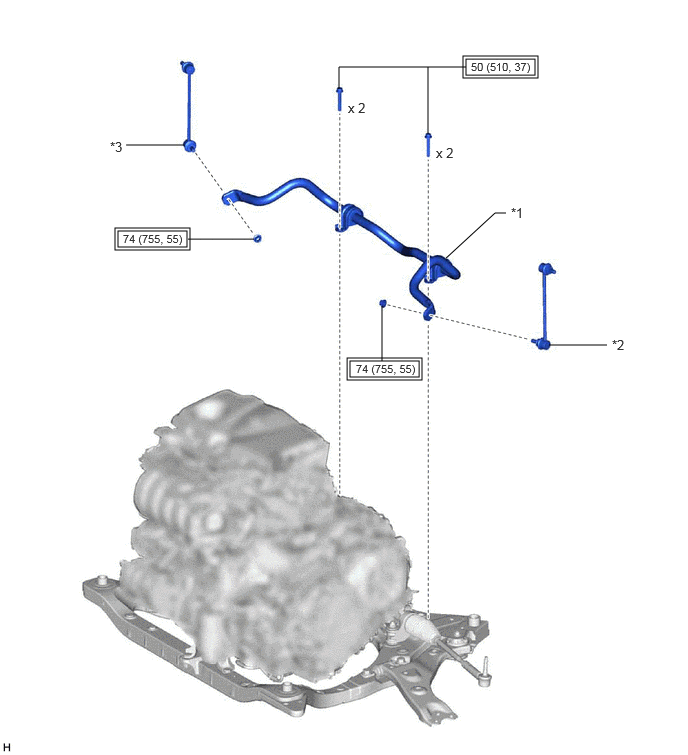

Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT STABILIZER BAR SUB-ASSEMBLY | *2 | FRONT STABILIZER LINK ASSEMBLY LH |
| *3 | FRONT STABILIZER LINK ASSEMBLY RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
