Removal [10/2022 - 11/2023]: Procedure

for A25A-FXS: Refer to REMOVAL [10/2022 - 11/2023]

for T24A-FTS: Refer to REMOVAL [10/2022 - 11/2023]

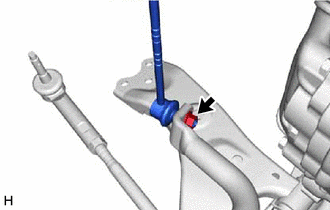

1. Remove the nut and front stabilizer link assembly LH from the front stabilizer bar sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the boot of the ball joint.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

HINT:

Perform the same procedure as for the LH side.

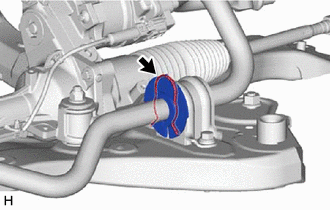

1. Remove the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the stabilizer protector from the front stabilizer bar.

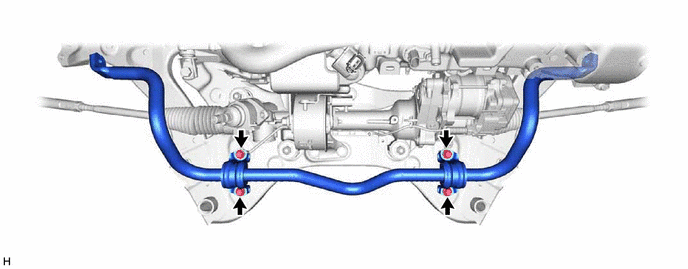

1. Remove the 4 bolts and front stabilizer bar sub-assembly from the front frame assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
