Components [12/2019 - 10/2022]

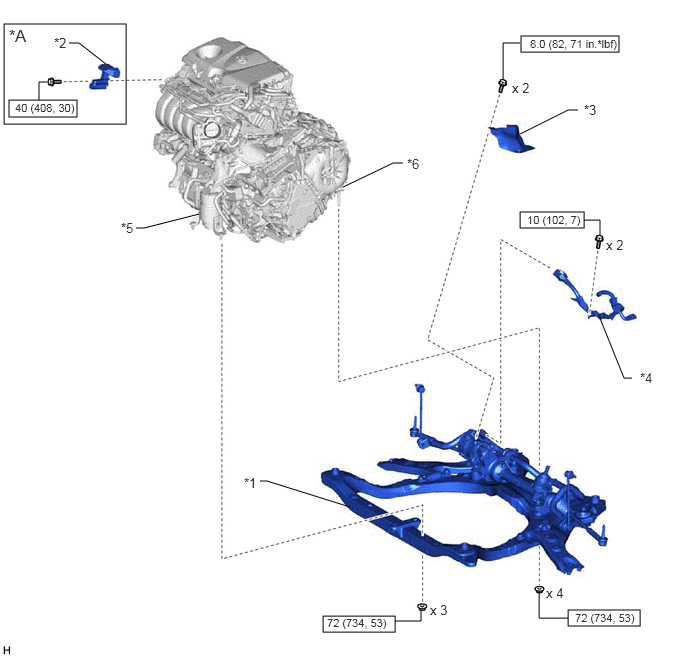

Fig 1: Front Suspension Member Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for A25A-FXS | - | - |
| *1 | FRONT FRAME ASSEMBLY | *2 | FUEL DELIVERY GUARD |
| *3 | STEERING GEAR HEAT INSULATOR | *4 | WIRE HARNESS |
| *5 | FRONT ENGINE MOUNTING INSULATOR | *6 | REAR ENGINE MOUNTING INSULATOR |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

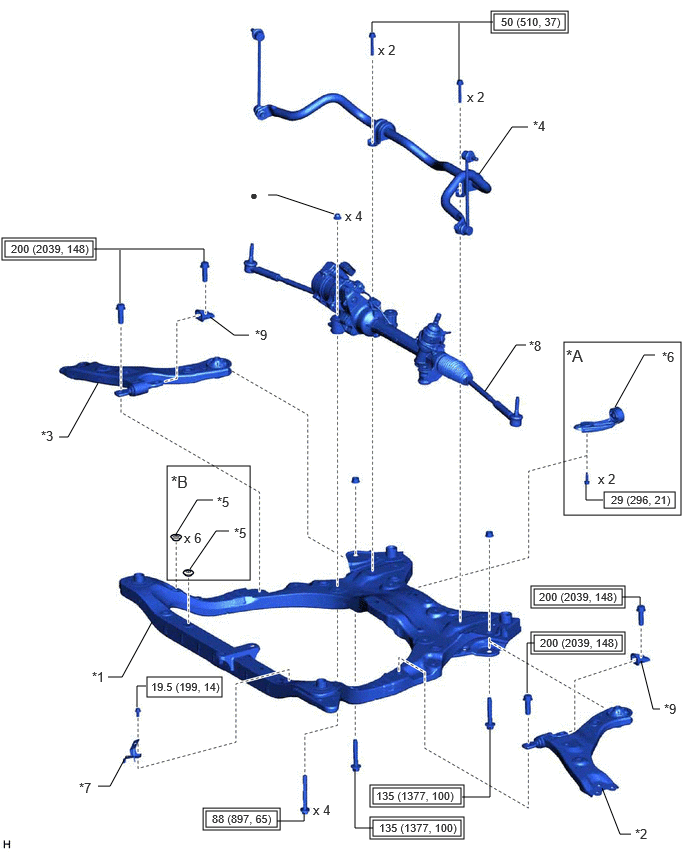

Fig 2: Front Suspension Member Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for A25A-FXS | *B | w/ HOLE PLUG |
| *1 | FRONT FRAME ASSEMBLY | *2 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
| *3 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH | *4 | FRONT STABILIZER BAR SUB-ASSEMBLY WITH LINK |
| *5 | HOLE PLUG | *6 | NO. 2 EXHAUST PIPE SUPPORT BRACKET |
| *7 | OIL COOLER BRACKET | *8 | RACK AND PINION POWER STEERING GEAR ASSEMBLY |
| *9 | FRONT LOWER ARM BUSHING STOPPER | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |
