Installation [10/2022 - 11/2023]: Procedure

1. Install the oil cooler bracket to the front frame assembly with the bolt.

   Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

1. Install the No. 2 exhaust pipe support bracket to the front frame assembly with the 2 bolts.

   Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

1. Install the front lower arm bushing stopper to the front lower No. 1 suspension arm sub-assembly LH.

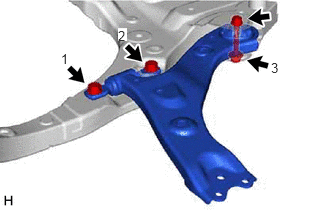

2. Install the front lower No. 1 suspension arm sub-assembly LH to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt (1), (2)

   Torque: 200 N.m (2039 kgf/cm, 148 ft.lbf)

   Bolt (3)

   Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

HINT:

Perform the same procedure as for the LH side.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

1. Install the rear engine mounting insulator to the front frame assembly with the 4 nuts.

   Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

2. Install the front engine mounting insulator to the front frame assembly with the 3 nuts.

   Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 7

for A25A-FXS: Refer to PROCEDURE - Step 22

for T24A-FTS: Refer to PROCEDURE - Step 31
