Components [10/2022 - ]

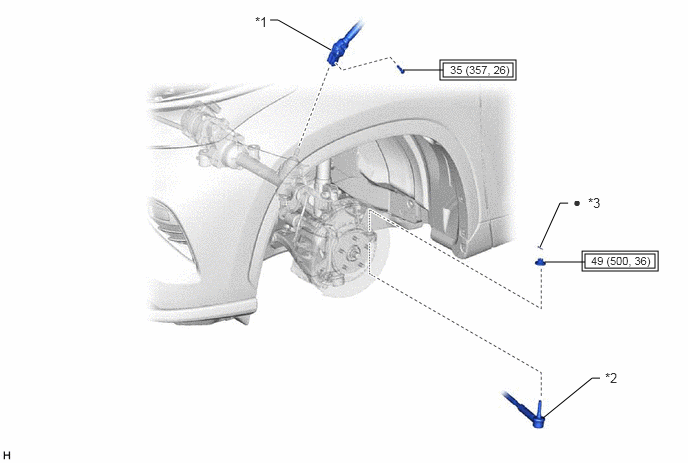

Fig 1: Steering Gear Replacement Components With Torque Specifications [10/2022 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING INTERMEDIATE SHAFT ASSEMBLY	*2	TIE ROD ASSEMBLY LH
*3	COTTER PIN	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

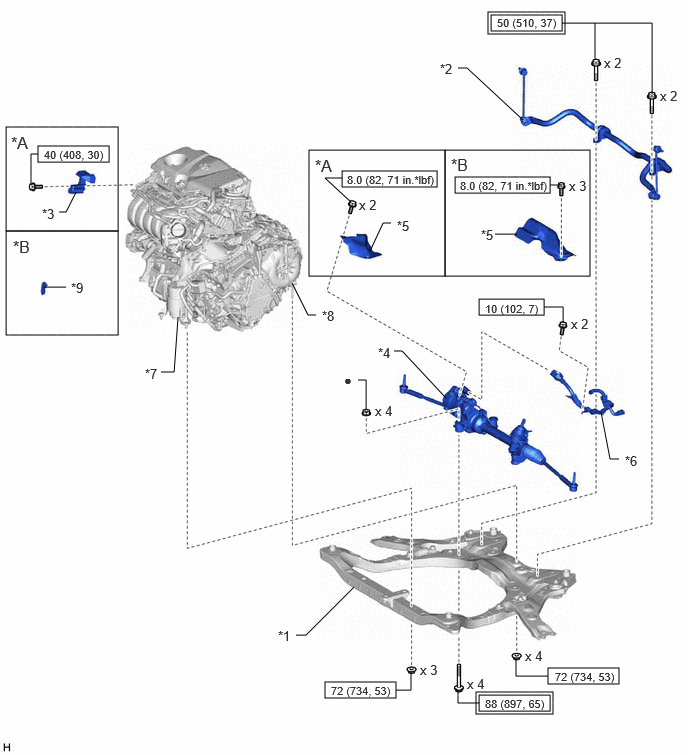

Fig 2: Steering Gear Replacement Components With Torque Specifications [10/2022 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for A25A-FXS	*B	for T24A-FTS
*1	FRONT FRAME ASSEMBLY	*2	FRONT STABILIZER BAR SUB-ASSEMBLY WITH LINK
*3	FUEL DELIVERY GUARD	*4	RACK AND PINION POWER STEERING GEAR ASSEMBLY
*5	STEERING GEAR HEAT INSULATOR	*6	WIRE HARNESS
*7	FRONT ENGINE MOUNTING INSULATOR	*8	REAR ENGINE MOUNTING INSULATOR
*9	ENGINE MOUNTING BRACKET CAP	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

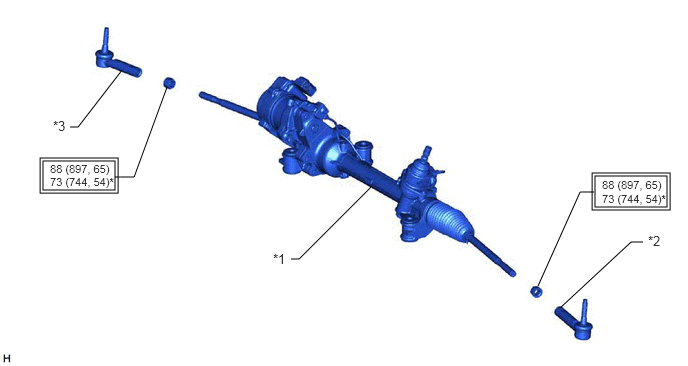

Fig 3: Steering Gear Replacement Components With Torque Specifications [10/2022 - ] (3 Of 4)

Callout	Description	Callout	Description
*1	RACK AND PINION POWER STEERING GEAR ASSEMBLY	*2	TIE ROD ASSEMBLY LH
*3	TIE ROD ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*	For use with SST

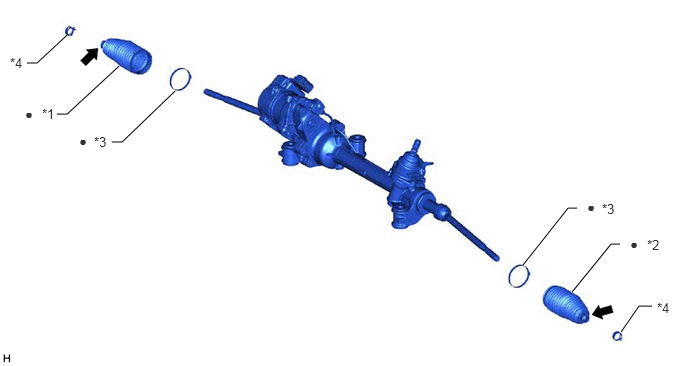

Fig 4: Steering Gear Replacement Components [10/2022 - ] (4 Of 4)

Callout	Description	Callout	Description
*1	NO. 1 STEERING RACK BOOT	*2	NO. 2 STEERING RACK BOOT
*3	NO. 2 STEERING RACK BOOT CLAMP	*4	STEERING RACK BOOT CLIP
•	Non-reusable part		Lithium soap base glycol grease
