Components [12/2019 - ]

Fig 1: Front Brake Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY	*2	WIRE HARNESS
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

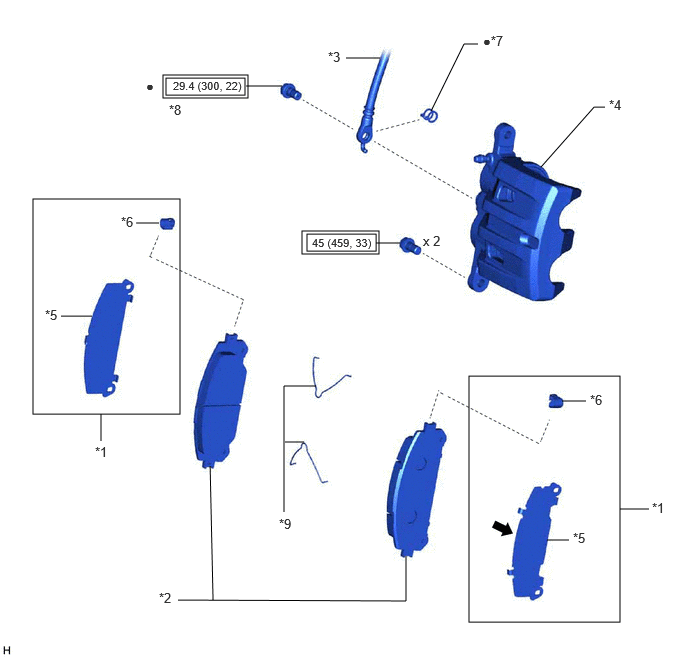

Fig 2: Front Brake Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT	*2	FRONT DISC BRAKE PAD
*3	FRONT FLEXIBLE HOSE	*4	FRONT DISC BRAKE CYLINDER ASSEMBLY
*5	FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM	*6	FRONT DISC BRAKE PAD WEAR INDICATOR PLATE
*7	GASKET	*8	UNION BOLT
*9	ANTI-SQUEAL SPRING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Brake caliper grease (Part No. 08887-80609)	-	-

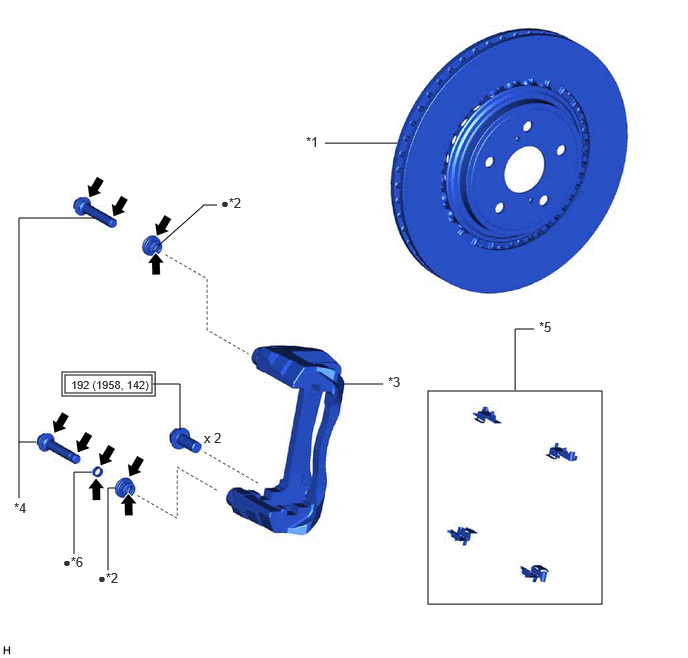

Fig 3: Front Brake Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	FRONT DISC	*2	FRONT DISC BRAKE BUSHING DUST BOOT
*3	FRONT DISC BRAKE CYLINDER MOUNTING	*4	FRONT DISC BRAKE CYLINDER SLIDE PIN
*5	FRONT DISC BRAKE PAD SUPPORT PLATE	*6	FRONT DISC BRAKE CYLINDER SLIDE BUSHING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-

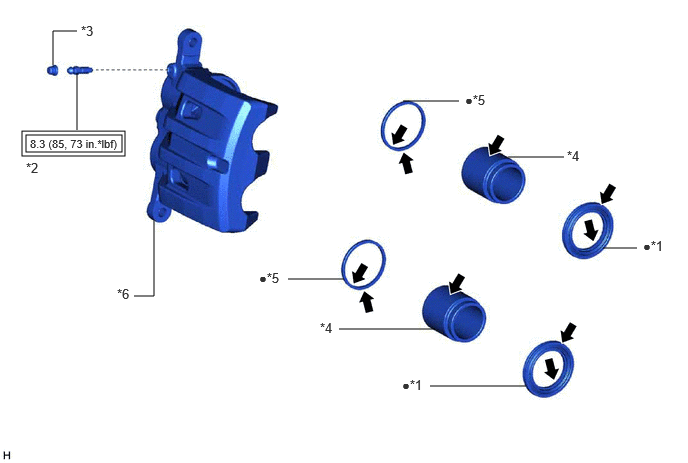

Fig 4: Front Brake Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	CYLINDER BOOT	*2	FRONT DISC BRAKE BLEEDER PLUG
*3	FRONT DISC BRAKE BLEEDER PLUG CAP	*4	FRONT DISC BRAKE PISTON
*5	PISTON SEAL	*6	FRONT DISC BRAKE CYLINDER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-
