Image from Camera for Parking Assist Monitor is Abnormal [10/2022 - 11/2023]: Wiring Diagram

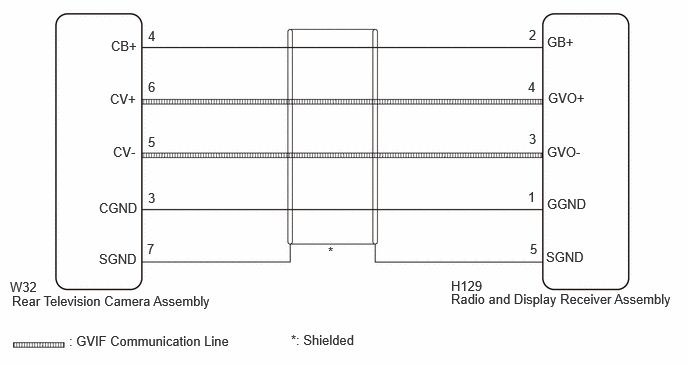

Fig 1: Image From Camera For Parking Assist Monitor Is Abnormal [10/2022 - 11/2023]
GTY1179853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
