  1. REMOVE FRONT DISC BRAKE PISTON
    1. Place a piece of cloth and a wooden block between the front disc brake piston and front disc brake cylinder.
      GTY930794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cloth
      *b Wooden Block

      HINT:

      Make sure to place the wooden block between the front disc brake piston which is not to be removed and the front disc brake cylinder.

    2. Apply compressed air to remove the front disc brake piston from the front disc brake cylinder.
      WARNING:
      • Do not hold the front disc brake cylinder with any part of your hand between the front disc brake cylinder and front disc brake piston.
      • Do not place any part of your hand in front of the front disc brake piston when using compressed air as a severe injury may result.
      GTY904535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not allow any brake fluid to spatter.

  2. REMOVE CYLINDER BOOT
    1. Using a screwdriver with its tip wrapped with protective tape, remove the cylinder boot from the front disc brake cylinder.

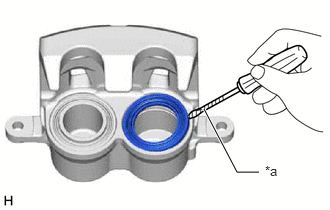

      GTY868135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the front disc brake cylinder.

  3. REMOVE PISTON SEAL
    1. Using a screwdriver with its tip wrapped with protective tape, remove the piston seal from the front disc brake cylinder.
      NOTE:

      Do not damage the inner surface or piston seal groove of the front disc brake cylinder.

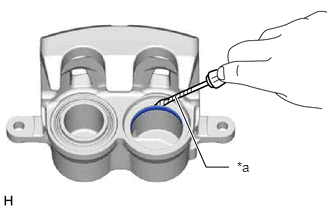

      GTY867563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  4. REMOVE FRONT DISC BRAKE BLEEDER PLUG CAP
    1. Remove the front disc brake bleeder plug cap from the front disc brake bleeder plug.
  5. REMOVE FRONT DISC BRAKE BLEEDER PLUG
    1. Remove the front disc brake bleeder plug from the front disc brake cylinder.
