Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for HV Model | - | - |
| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | *2 | WIRE HARNESS |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

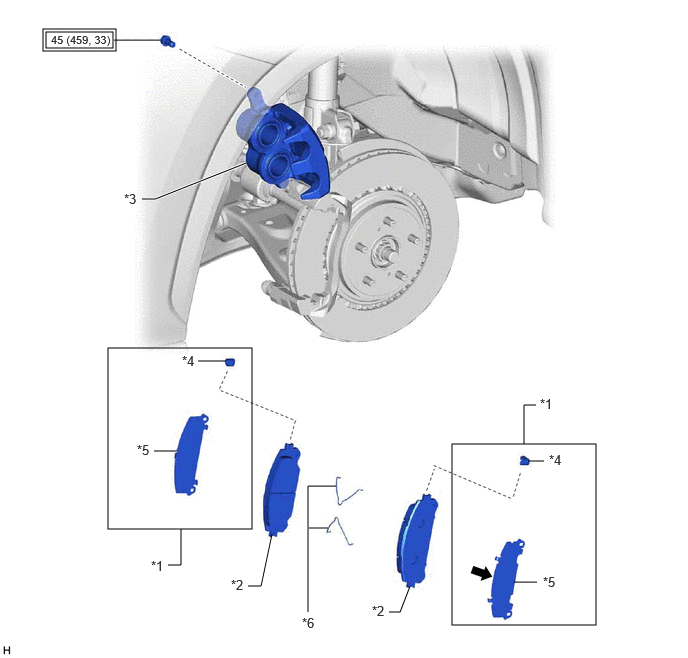

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT | *2 | FRONT DISC BRAKE PAD |
| *3 | FRONT DISC BRAKE CYLINDER ASSEMBLY | *4 | FRONT DISC BRAKE PAD WEAR INDICATOR PLATE |
| *5 | FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM | *6 | ANTI-SQUEAL SPRING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
Brake caliper grease (Part No. 08887-80609) |
