Components [12/2019 - ]

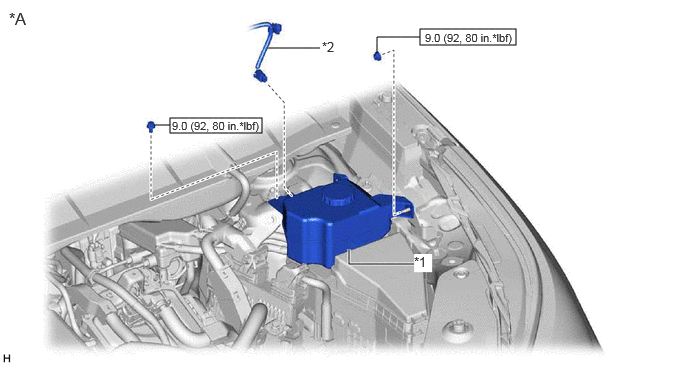

Fig 1: Front Brake Flexible Hose Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY	*2	WIRE HARNESS
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

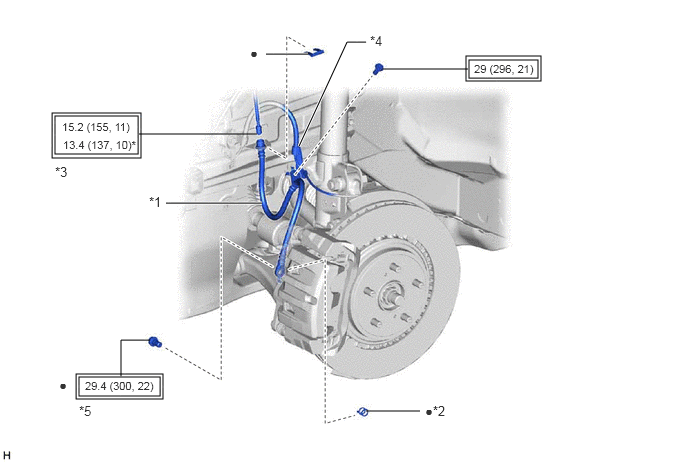

Fig 2: Front Brake Flexible Hose Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT FLEXIBLE HOSE	*2	GASKET
*3	BRAKE LINE	*4	FRONT SPEED SENSOR
*5	UNION BOLT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*	For use with a union nut wrench
•	Non-reusable part	-	-
