Components [12/2019 - ]

Fig 1: Front Axle Hub Bolt Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY	*2	WIRE HARNESS
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

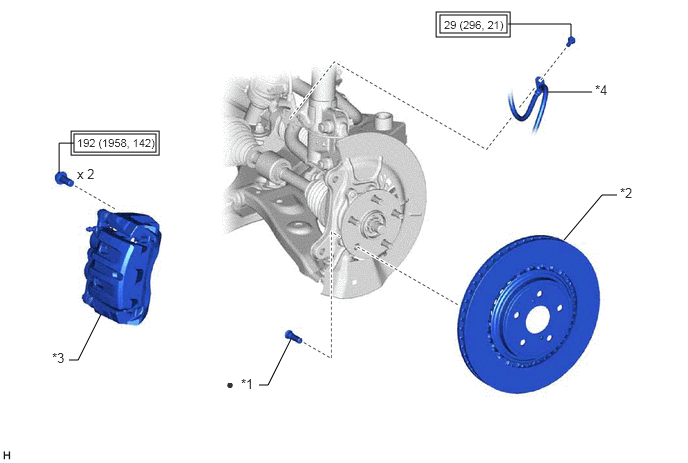

Fig 2: Front Axle Hub Bolt Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT AXLE HUB BOLT	*2	FRONT DISC
*3	FRONT DISC BRAKE CALIPER ASSEMBLY	*4	FRONT FLEXIBLE HOSE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
