Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for HV Model | - | - |
| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | *2 | WIRE HARNESS |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

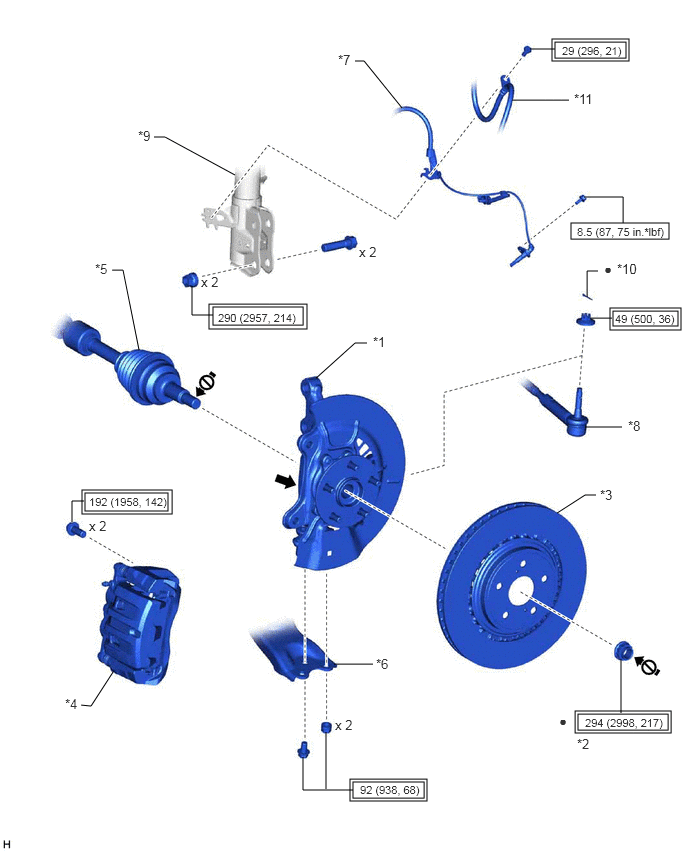

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT AXLE ASSEMBLY | *2 | FRONT AXLE SHAFT NUT |
| *3 | FRONT DISC | *4 | FRONT DISC BRAKE CALIPER ASSEMBLY |
| *5 | FRONT DRIVE SHAFT ASSEMBLY | *6 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY |
| *7 | FRONT SPEED SENSOR | *8 | TIE ROD ASSEMBLY |
| *9 | FRONT SHOCK ABSORBER ASSEMBLY | *10 | COTTER PIN |
| *11 | FRONT FLEXIBLE HOSE | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
Toyota Body Grease W |
|
Do not apply lubricants to the threaded parts | - | - |

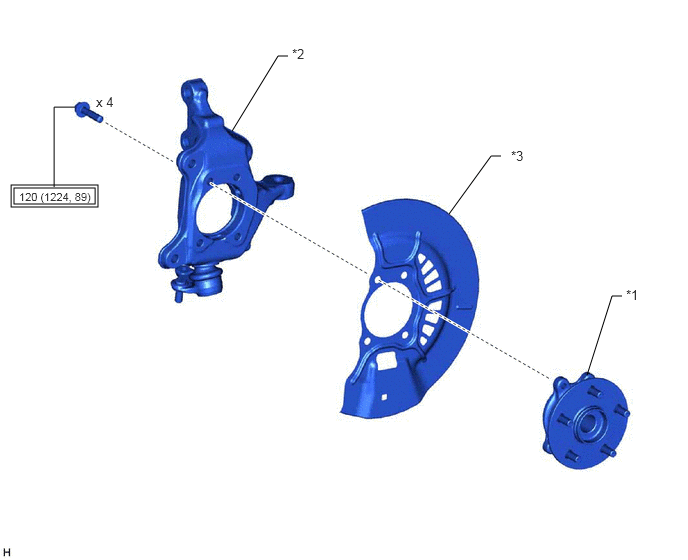

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT AXLE HUB SUB-ASSEMBLY | *2 | STEERING KNUCKLE |
| *3 | FRONT DISC BRAKE DUST COVER | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
