Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT AXLE ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE FRONT LOWER BALL JOINT ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE STEERING KNUCKLE
    1. Secure the front axle assembly between aluminum plates in a vise.
      GTY904835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not overtighten the vise.

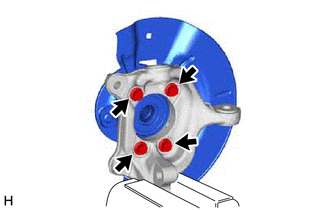

    2. Remove the 4 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.
      NOTE:
      • Do not drop the front axle hub sub-assembly.
      • Be careful not to damage the speed sensor rotor or contact surfaces.
      • Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
