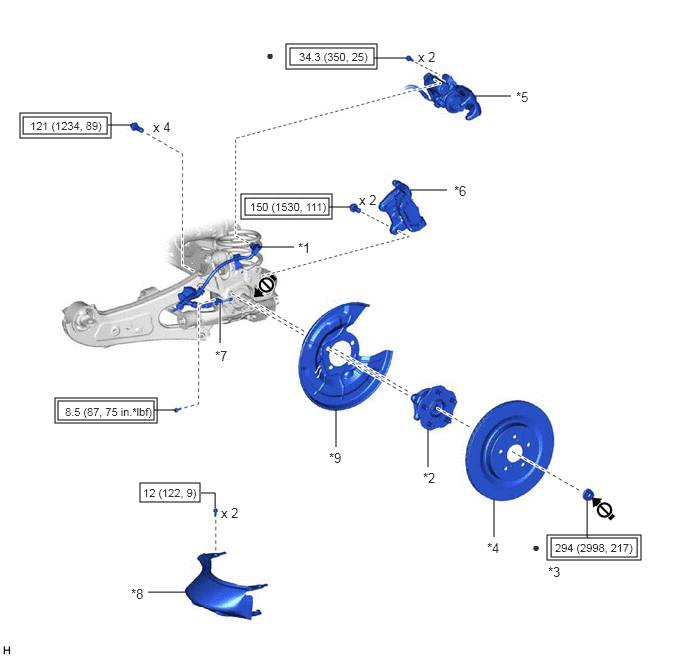

| *1 |
NO. 2 PARKING BRAKE WIRE ASSEMBLY |
*2 |
REAR AXLE HUB AND BEARING ASSEMBLY |
| *3 |
REAR AXLE SHAFT NUT |
*4 |
REAR DISC |
| *5 |
REAR DISC BRAKE CYLINDER ASSEMBLY |
*6 |
REAR DISC BRAKE CYLINDER MOUNTING WITH BRAKE PAD |
| *7 |
REAR SKID CONTROL SENSOR |
*8 |
REAR SUSPENSION ARM COVER |
| *9 |
REAR DISC BRAKE DUST COVER SUB-ASSEMBLY |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
 |
Do not apply lubricants to the threaded parts |
