Components [12/2019 - ]

Fig 1: Rear Axle Carrier (For AWD) Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY	*2	WIRE HARNESS
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

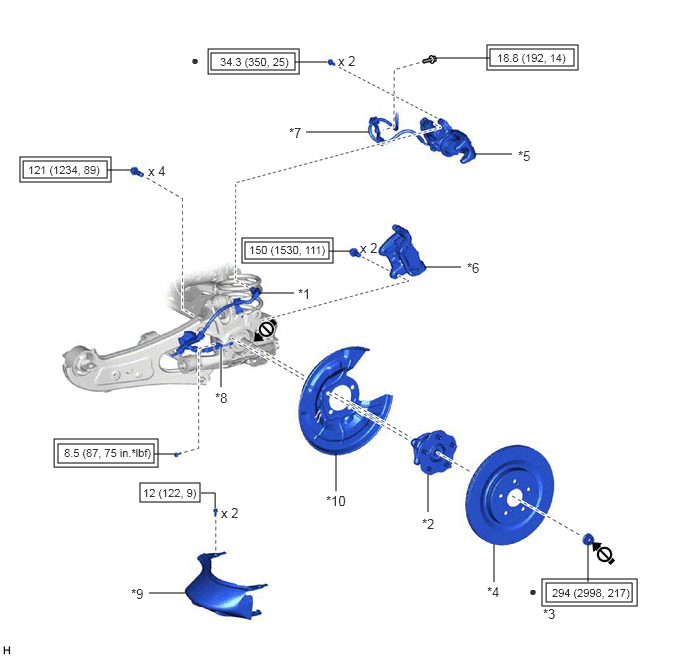

Fig 2: Rear Axle Carrier (For AWD) Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR AXLE HUB AND BEARING ASSEMBLY
*3	REAR AXLE SHAFT NUT	*4	REAR DISC
*5	REAR DISC BRAKE CYLINDER ASSEMBLY	*6	REAR DISC BRAKE CYLINDER MOUNTING WITH BRAKE PAD
*7	REAR FLEXIBLE HOSE	*8	REAR SKID CONTROL SENSOR
*9	REAR SUSPENSION ARM COVER	*10	REAR DISC BRAKE DUST COVER SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		Do not apply lubricants to the threaded parts

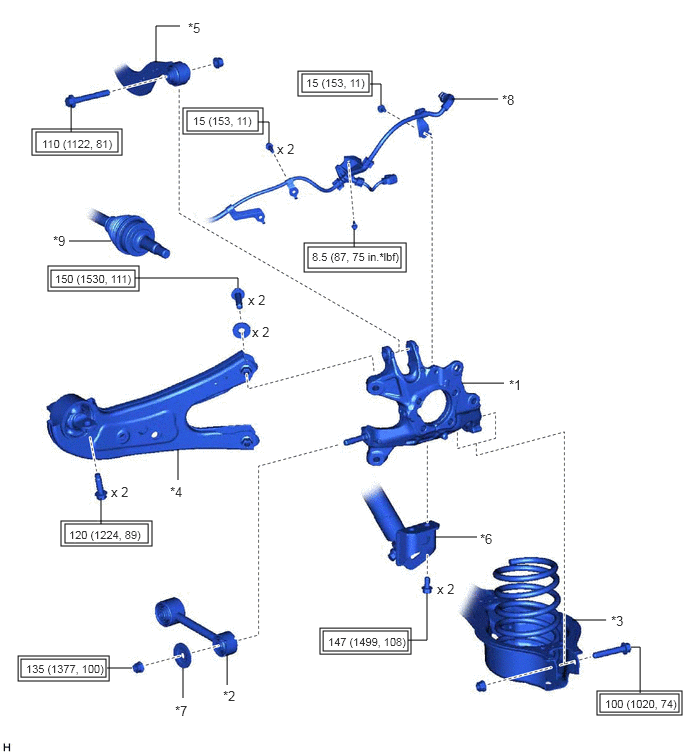

Fig 3: Rear Axle Carrier (For AWD) Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	REAR AXLE CARRIER SUB-ASSEMBLY	*2	REAR NO. 1 SUSPENSION ARM ASSEMBLY
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY	*4	REAR TRAILING ARM ASSEMBLY
*5	REAR UPPER CONTROL ARM ASSEMBLY	*6	REAR LOWER SHOCK ABSORBER BRACKET SUB-ASSEMBLY
*7	SPACER	*8	NO. 2 PARKING BRAKE WIRE ASSEMBLY
*9	REAR DRIVE SHAFT ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 4: Rear Axle Carrier (For AWD) Replacement Components (4 Of 4)

Callout	Description	Callout	Description
*1	LOWER CONTROL ARM PIN	-	-
•	Non-reusable part	-	-
