Removal [12/2019 - ]: Procedure

Refer to PRECAUTION [12/2019 - ]

1. Move the shift lever to P.
2. Turn the ignition switch ON.
3. Operate the electric parking brake switch assembly to release the parking brake.

   HINT:

   If the parking brake cannot be released:

   Refer to OPERATION METHOD [12/2019 - ]

4. Turn the ignition switch off.

Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

1. Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.
   NOTE:

   • Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
   • Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

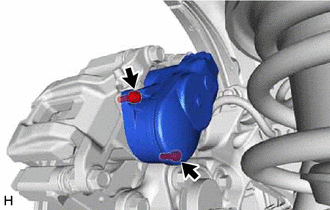

1. Using a 5 mm hexagon socket wrench, remove the 2 bolts and parking brake actuator assembly from the rear disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Check for brake fluid leaks on the back side of the rear disc brake cylinder assembly.
   • If there are any brake fluid leaks, replace the rear disc brake cylinder assembly.
2. Remove the O-ring from the rear disc brake cylinder assembly.
