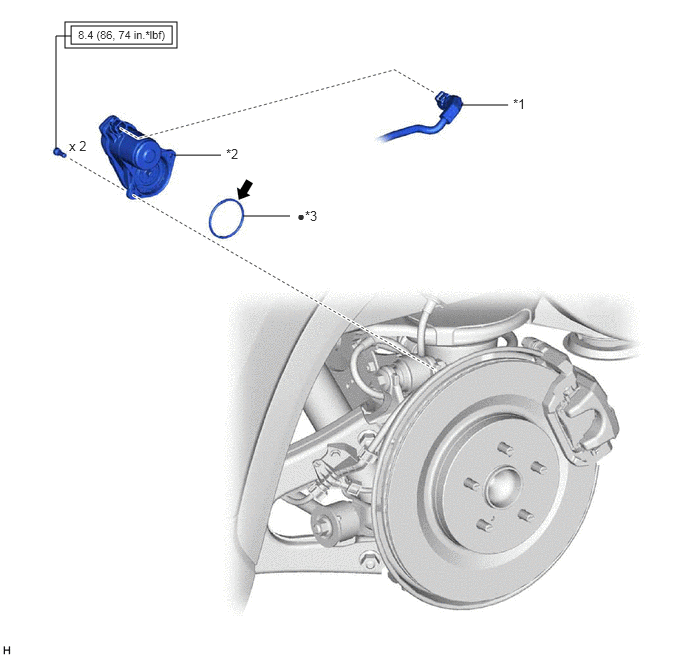

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | PARKING BRAKE ACTUATOR ASSEMBLY |
| *3 | O-RING | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
|
Lithium soap base glycol grease | - | - |
