Inspection [12/2019 - ]: Procedure

  1. INSPECT PARKING BRAKE ACTUATOR ASSEMBLY
    1. Parking brake actuator assembly operation inspection
      1. Apply voltage to the terminals of the parking brake actuator assembly and check that it operates as specified.

        OK

        Connection Parking Brake Actuator Assembly Operation
        Auxiliary battery positive (+) - 2
        Auxiliary battery negative (-) - 1        		 Lock
        Auxiliary battery positive (+) - 1
        Auxiliary battery negative (-) - 2        		 Release

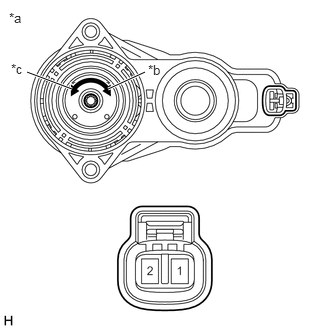

        GTY874015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Parking Brake Actuator Assembly)
        *b Lock
        *c Release

        If the result is not as specified, replace the parking brake actuator assembly.
