Components [12/2019 - 10/2022]

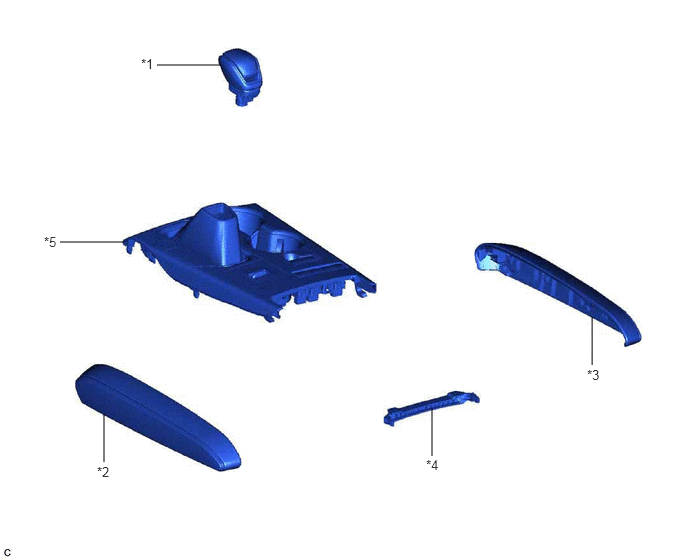

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | SHIFT LEVER KNOB SUB-ASSEMBLY | *2 | CONSOLE BOX CUSHION |
| *3 | NO. 2 CONSOLE BOX CUSHION | *4 | FRONT CONSOLE BOX COVER |
| *5 | CONSOLE PANEL SUB-ASSEMBLY | - | - |

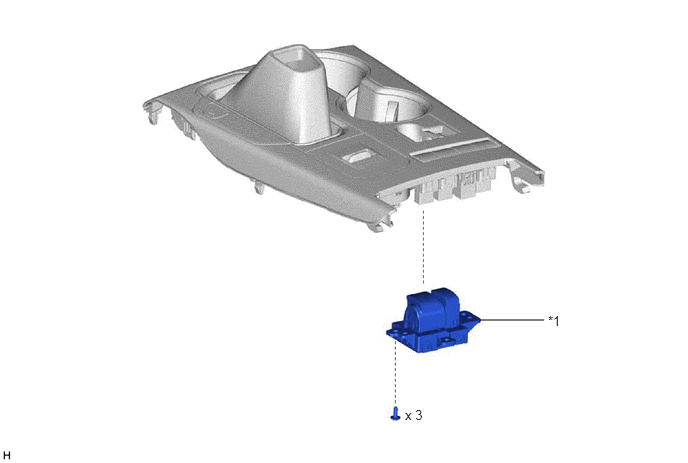

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | - | - |
