Parts Location [11/2023 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

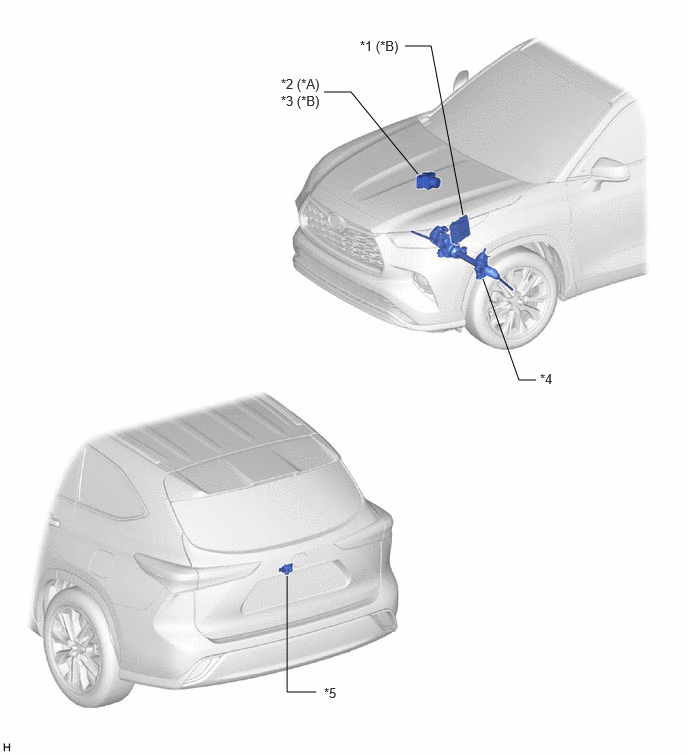

*A	for HV Model	*B	for Gasoline Model
*1	ECM	*2	BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU
*3	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*4	RACK AND PINION POWER STEERING GEAR ASSEMBLY
*5	REAR TELEVISION CAMERA ASSEMBLY	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

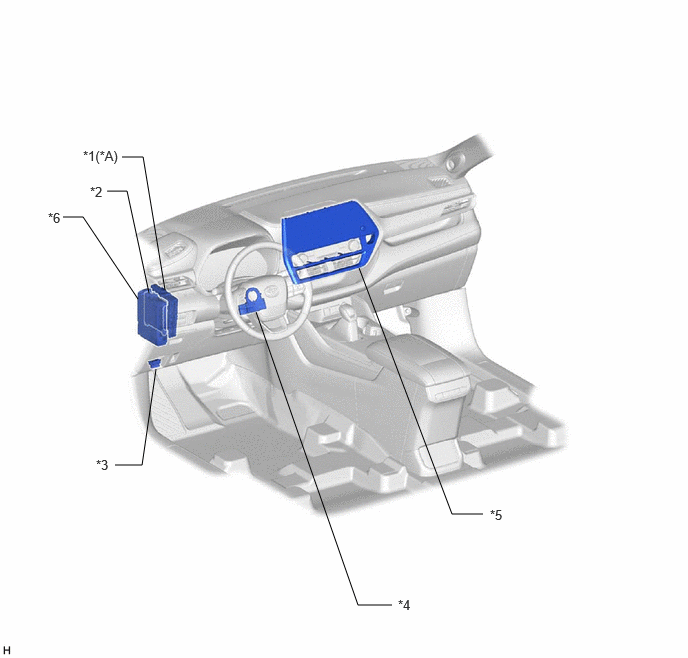

*A	for HV Model	-	-
*1	HYBRID VEHICLE CONTROL ECU	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	DLC3	*4	STEERING SENSOR
*5	RADIO AND DISPLAY RECEIVER ASSEMBLY	*6	POWER DISTRIBUTION BOX ASSEMBLY
