Components [11/2023 - ]
WARNING: This page is about a different variant/trim than selected.

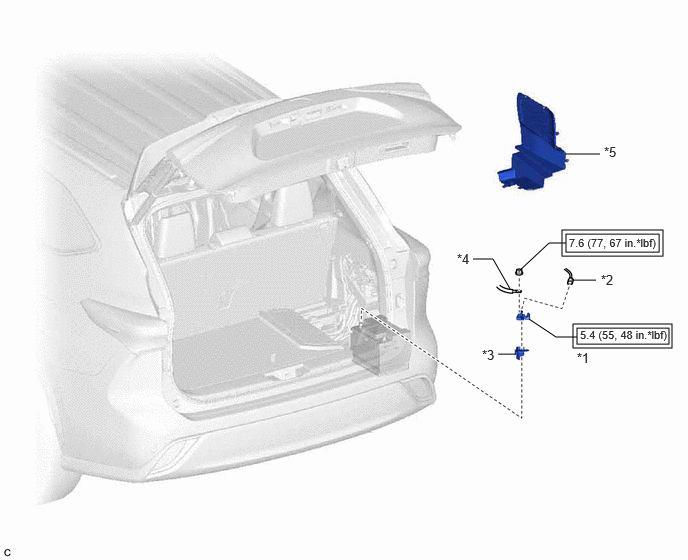

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY STATE SENSOR ASSEMBLY | *2 | WIRE HARNESS |
| *3 | BATTERY CURRENT SENSOR HOLDER | *4 | NO. 2 FRAME WIRE |
| *5 | BATTERY SERVICE HOLE COVER | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
