Removal [11/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:
  2. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY STATE SENSOR ASSEMBLY

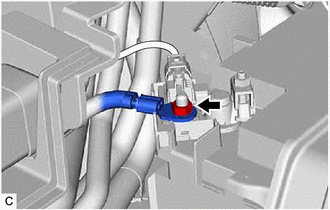

    1. Remove the nut and disconnect the No. 2 frame wire from the battery state sensor assembly.
      GTY1181130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

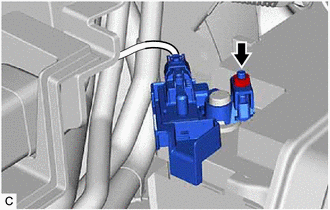

    2. Loosen the nut and remove the battery state sensor assembly from the auxiliary battery.
      GTY1180543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

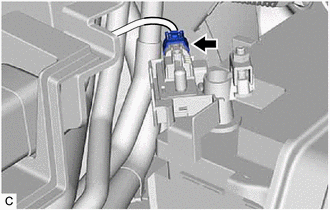

    3. Disconnect the battery state sensor assembly connector.
      GTY1181129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the wire harness clamp.

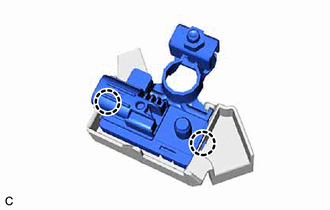

    5. Disengage the 2 claws to remove the battery state sensor assembly from the battery current sensor holder.
      GTY1181132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
