Components [12/2019 - ]

Fig 1: Rear Brake Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY	*2	WIRE HARNESS
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

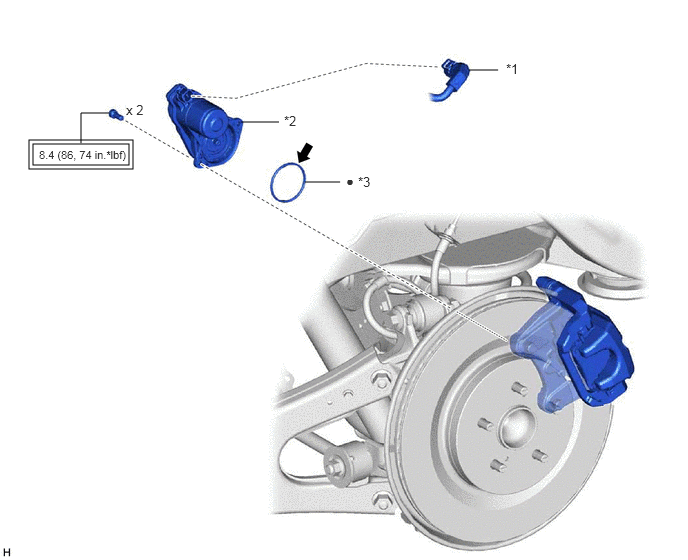

Fig 2: Rear Brake Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	PARKING BRAKE ACTUATOR ASSEMBLY
*3	O-RING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-

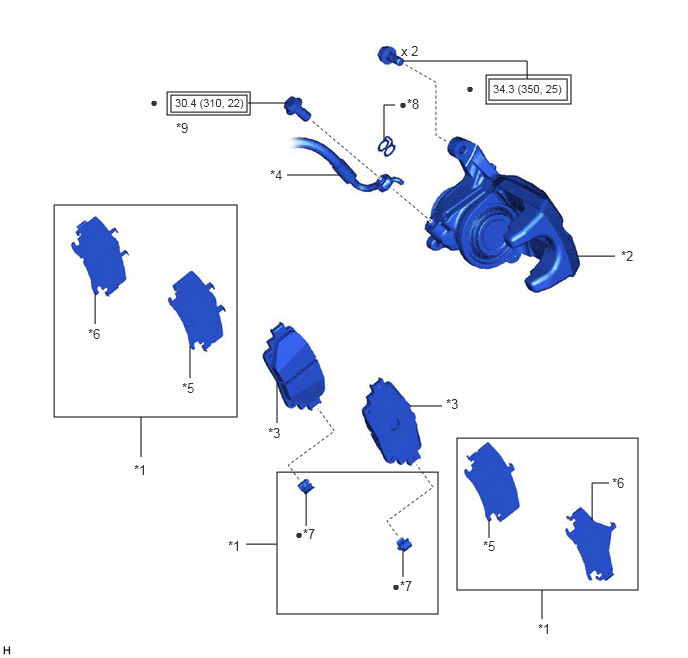

Fig 3: Rear Brake Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR DISC BRAKE ANTI-SQUEAL SHIM KIT	*2	REAR DISC BRAKE CYLINDER ASSEMBLY
*3	REAR DISC BRAKE PAD	*4	REAR FLEXIBLE HOSE
*5	REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM	*6	REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM
*7	REAR DISC BRAKE PAD WEAR INDICATOR PLATE	*8	GASKET
*9	UNION BOLT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

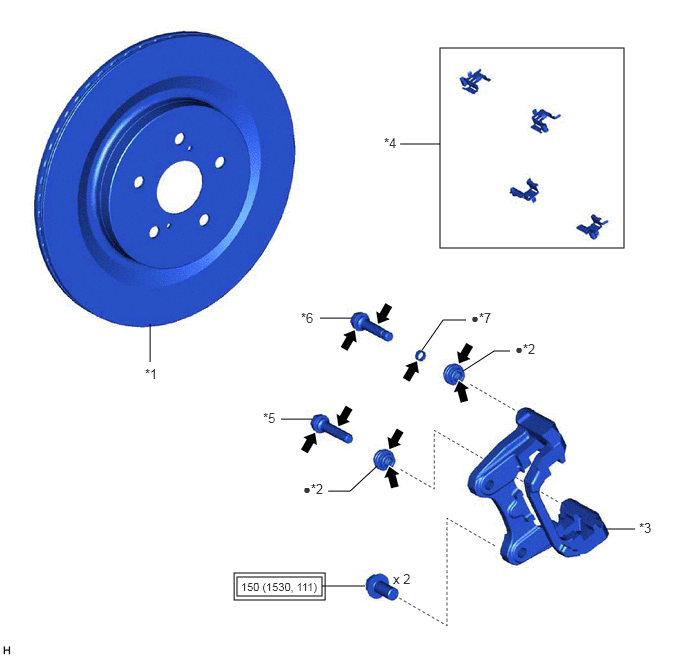

Fig 4: Rear Brake Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*1	REAR DISC	*2	REAR DISC BRAKE BUSHING DUST BOOT
*3	REAR DISC BRAKE CYLINDER MOUNTING	*4	REAR DISC BRAKE PAD SUPPORT PLATE
*5	REAR NO. 1 DISC BRAKE CYLINDER SLIDE PIN	*6	REAR NO. 2 DISC BRAKE CYLINDER SLIDE PIN
*7	REAR DISC BRAKE CYLINDER SLIDE BUSHING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-

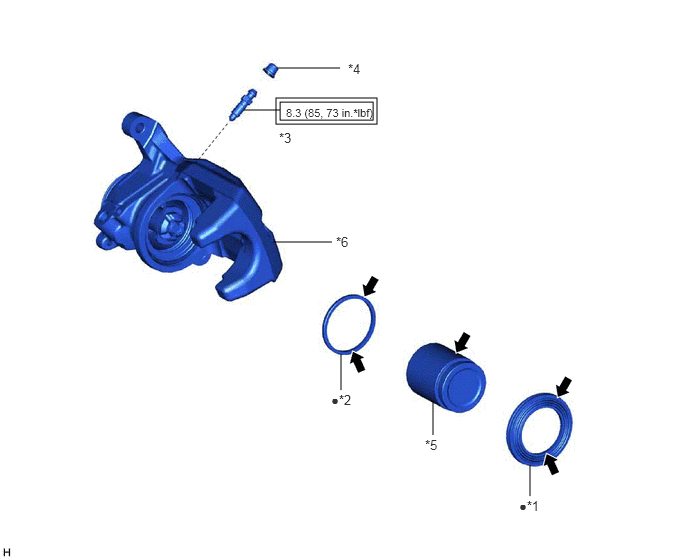

Fig 5: Rear Brake Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*1	CYLINDER BOOT	*2	PISTON SEAL
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
*5	REAR DISC BRAKE PISTON	*6	REAR DISC BRAKE CYLINDER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-
