Disassembly [12/2019 - ]: Procedure

  1. REMOVE CYLINDER BOOT
    1. Using a screwdriver with its tip wrapped with protective tape, remove the cylinder boot from the rear disc brake cylinder.
      NOTE:

      Do not damage the inner surface or cylinder boot groove of the rear disc brake cylinder.

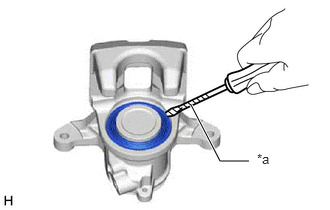

      GTY847197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  2. REMOVE REAR DISC BRAKE PISTON
    1. Place a piece of cloth between the rear disc brake piston and rear disc brake cylinder.

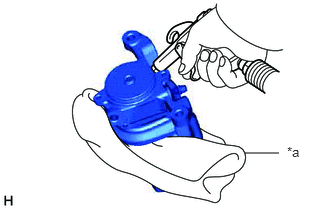

      GTY852579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cloth
    2. Apply compressed air to remove the rear disc brake piston from the rear disc brake cylinder.
      WARNING:

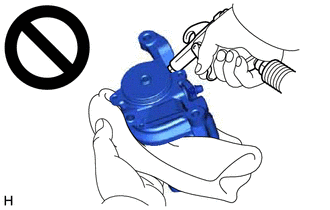

      GTY904881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Do not hold the rear disc brake cylinder with any part of your hand between the rear disc brake cylinder and rear disc brake piston.
      • Do not place any part of your hand in front of the rear disc brake piston when using compressed air as a severe injury may result.
      NOTE:

      Do not allow any brake fluid to spatter.

  3. REMOVE PISTON SEAL
    1. Using a screwdriver with its tip wrapped with protective tape, remove the piston seal from the rear disc brake cylinder.
      NOTE:
      • Do not damage the inner surface or piston seal groove of the rear disc brake cylinder.
      • Do not allow the nut to rotate. If the nut is accidentally allowed to rotate, return it to its original position.

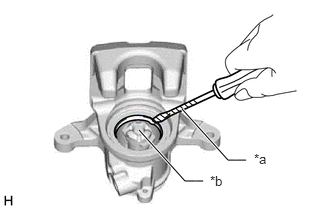

      GTY856683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Nut
  4. REMOVE REAR DISC BRAKE BLEEDER PLUG CAP
    1. Remove the rear disc brake bleeder plug cap from the rear disc brake bleeder plug.
  5. REMOVE REAR DISC BRAKE BLEEDER PLUG
    1. Remove the rear disc brake bleeder plug from the rear disc brake cylinder.
