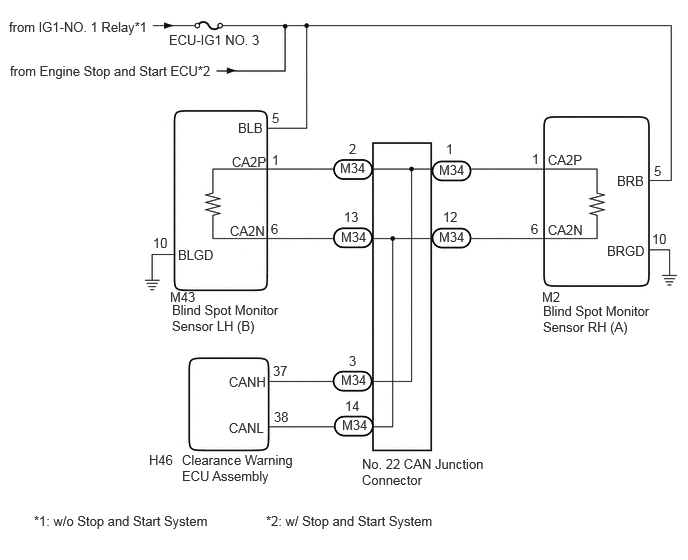

DTC U1177-87: Lost Communication with Side Obstacle Detection Control Module "A" (ch2) Missing Message; DTC U1178-87: Lost Communication with Side Obstacle Detection Control Module "B" (ch2) Missing Message [12/2019 - 11/2023]: Wiring Diagram

GTY984600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
