Parts Location [12/2019 - 11/2023]: Illustration
WARNING: This page is about a different variant/trim than selected.

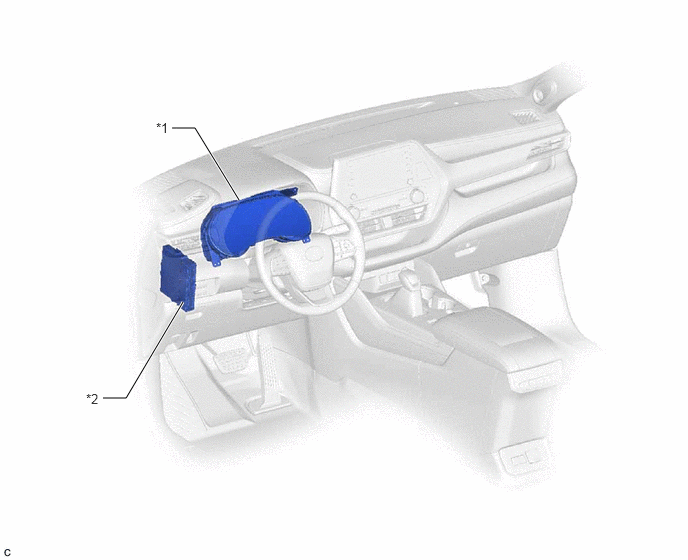

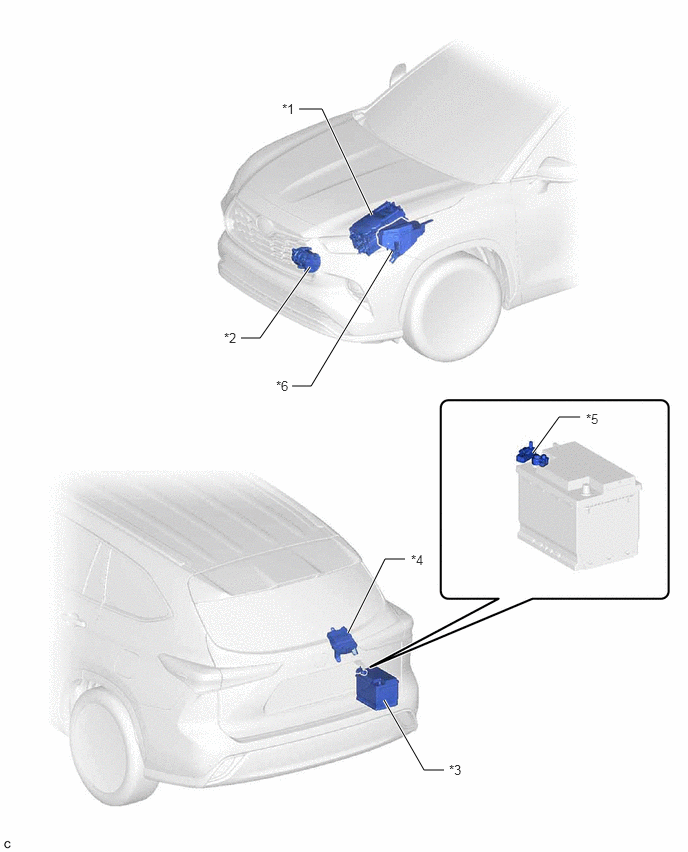

| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | COMPRESSOR WITH MOTOR ASSEMBLY |
| *3 | AUXILIARY BATTERY | *4 | NO. 5 FLOOR RELAY BLOCK AND NO. 5 FLOOR JUNCTION BLOCK ASSEMBLY |
| *5 | BATTERY STATE SENSOR ASSEMBLY | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
