Parts Location [11/2023 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

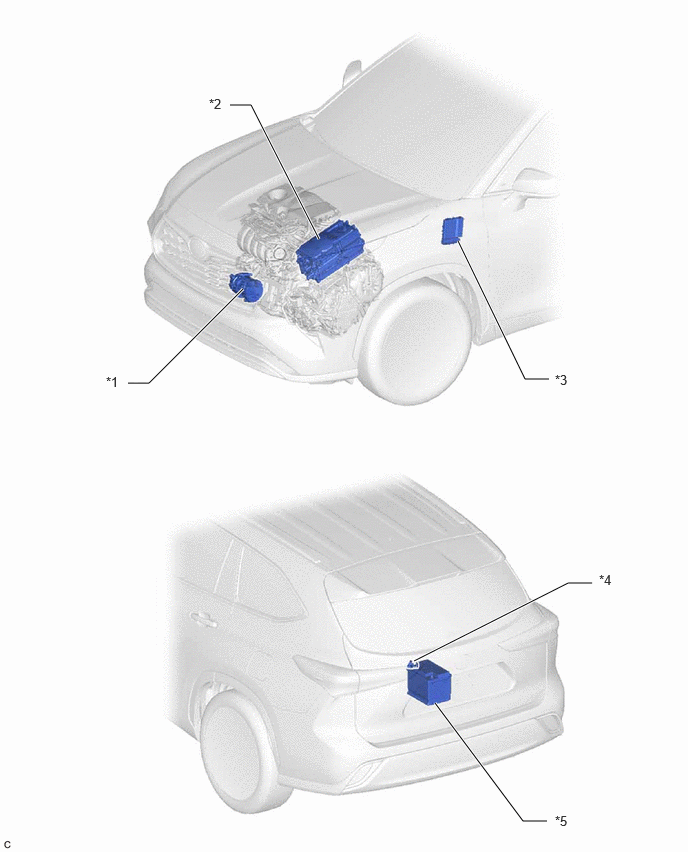

| *1 |
COMPRESSOR WITH MOTOR ASSEMBLY |
*2 |
INVERTER WITH CONVERTER ASSEMBLY |
| *3 |
HYBRID VEHICLE CONTROL ECU |
*4 |
BATTERY STATE SENSOR ASSEMBLY |
| *5 |
AUXILIARY BATTERY |
- |
- |
