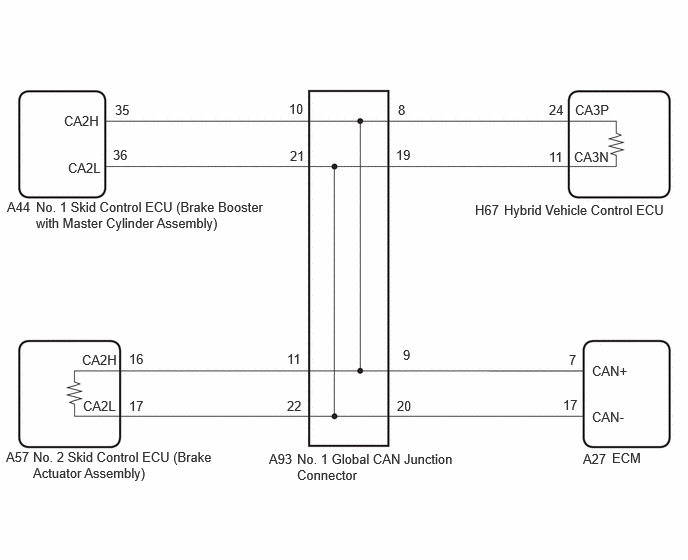

DTC U111A-87: Lost Communication with ECM/PCM "A" (ch2) Missing Message; DTC U1150-00: Lost Communication with Hybrid Powertrain Control Module (ch2); DTC U1150-87: Lost Communication with Hybrid Powertrain Control Module (ch2) Missing Message; DTC U1159-87: Lost Communication with Electronic Brake Booster Control Module "A" (ch3) Missing Message; DTC U1170-87: Lost Communication with Brake System Control Module (Secondary CAN Line) Missing Message; DTC U117D-87: Lost Communication with Brake System Control Module (ch4) Missing Message [11/2023 - ]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
