Hybrid Vehicle Control ECU Communication Stop Mode [11/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR OPEN IN CAN BUS LINES (HYBRID VEHICLE CONTROL ECU BRANCH LINE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the H67 hybrid vehicle control ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H67-9 (CA1H) - H67-22 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω

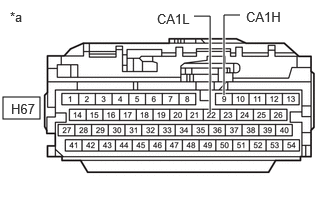

      GTY1177835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Hybrid Vehicle Control ECU)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (HYBRID VEHICLE CONTROL ECU)

    Result:

    OK

    See step  2

  2. CHECK ECU POWER SOURCE CIRCUIT
    1. Check the ECU power source circuit.

      Refer to ECU Power Source Circuit [11/2023 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
