System Diagram [12/2019 - 10/2022]

Fig 1: Parking Support Brake System Diagram [12/2019 - 10/2022] (1 Of 3)
GTY857950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Parking Support Brake System Diagram [12/2019 - 10/2022] (2 Of 3)
GTY985048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

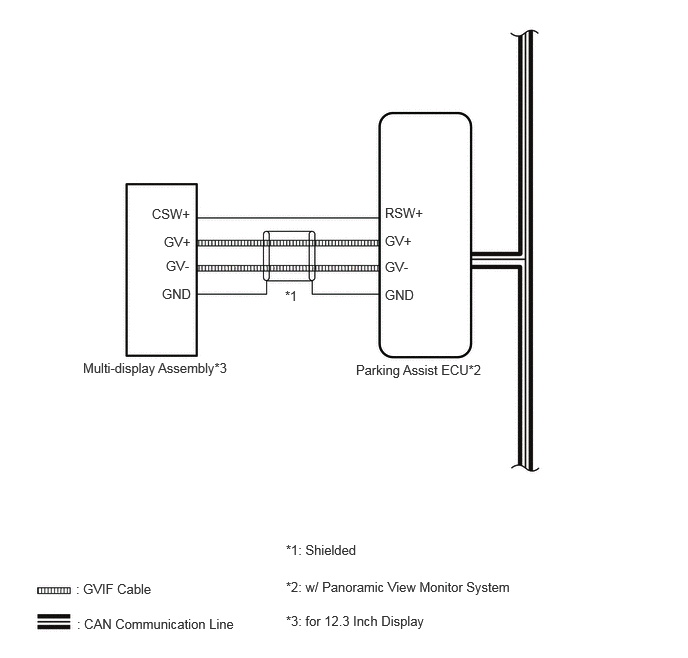

Fig 3: Parking Support Brake System Diagram [12/2019 - 10/2022] (3 Of 3)
GTY919205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For HV Model:

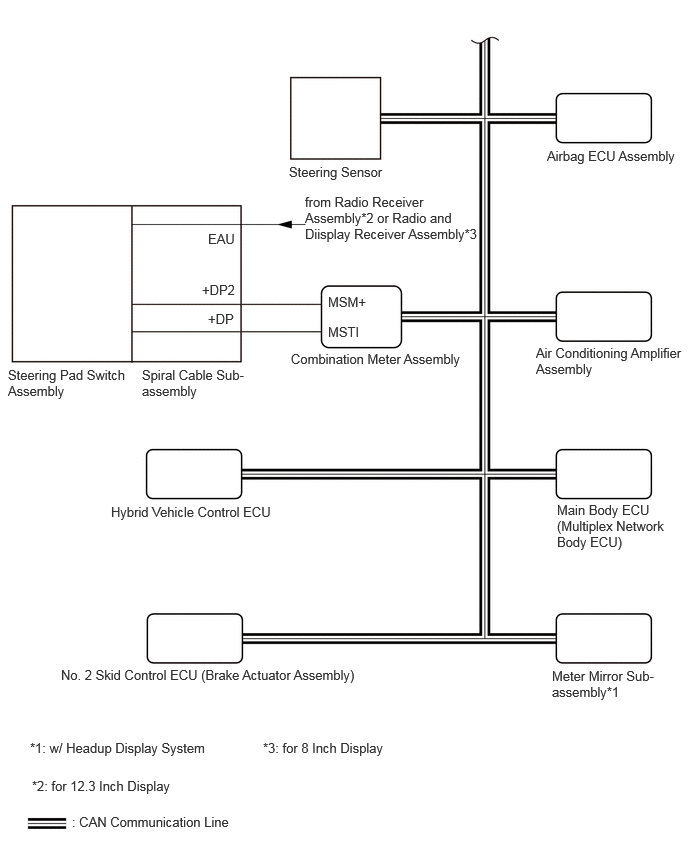

Fig 4: For HV Model [12/2019 - 10/2022]
GTY944496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For Gasoline Model:

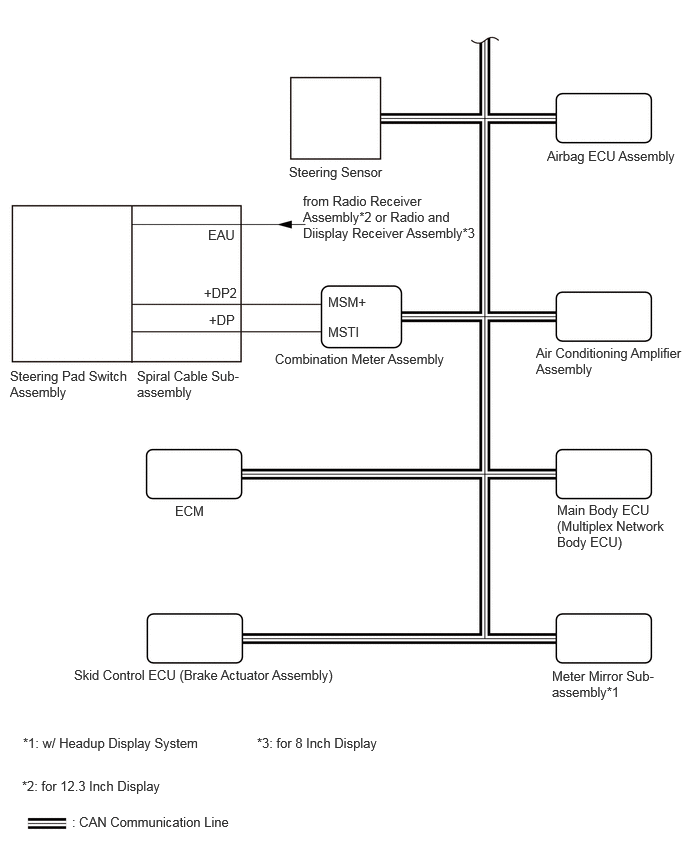

Fig 5: For Gasoline Model: [12/2019 - 10/2022]
GTY921191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
