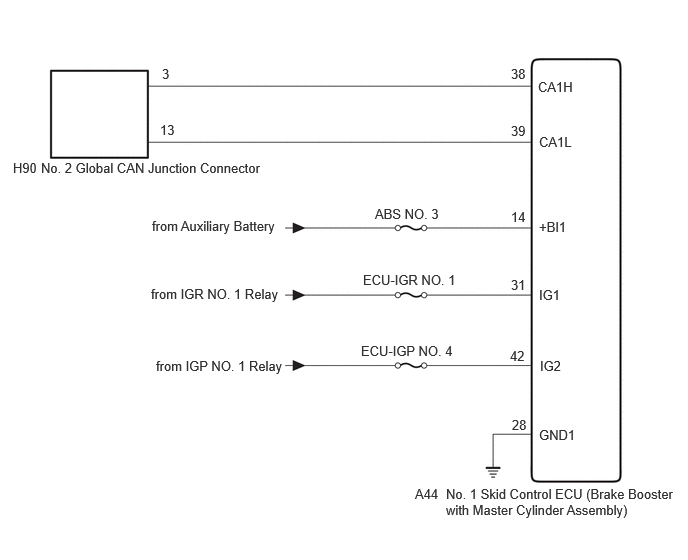

Brake Booster (Skid Control ECU) Communication Stop Mode [11/2023 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1177975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
