Combination Meter ECU Communication Stop Mode [12/2019 - 10/2022]: Procedure
WARNING: This page is about a different variant/trim than selected.
- CHECK FOR OPEN IN CAN BUS LINES (COMBINATION METER ASSEMBLY MAIN LINE)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the H21 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

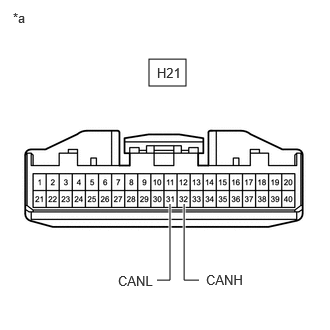

Tester Connection Condition Specified Condition H21-32 (CANH) - H21-31 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω *a Front view of wire harness connector
(to Combination Meter Assembly)Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (COMBINATION METER ASSEMBLY)
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

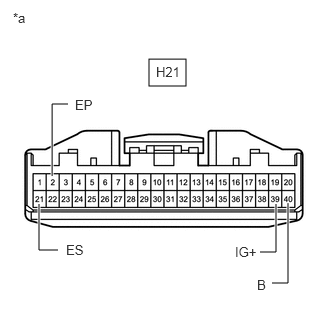

Tester Connection Condition Specified Condition H21-2 (EP) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω H21-21 (ES) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω *a Front view of wire harness connector
(to Combination Meter Assembly) - Reconnect the cable to the negative (-) auxiliary battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition H21-39 (IG+) - Body ground Ignition switch ON 11 to 14 V H21-40 (B) - Body ground Ignition switch off 11 to 14 V Result
Result OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [12/2019 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
