Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio / Video System - Circuit Tests & Symptom Tests (2 Of 2) >> Audio And Visual System >> Speaker Circuit [10/2022 - ] >> Wiring Diagram

Speaker Circuit [10/2022 - ]: Wiring Diagram

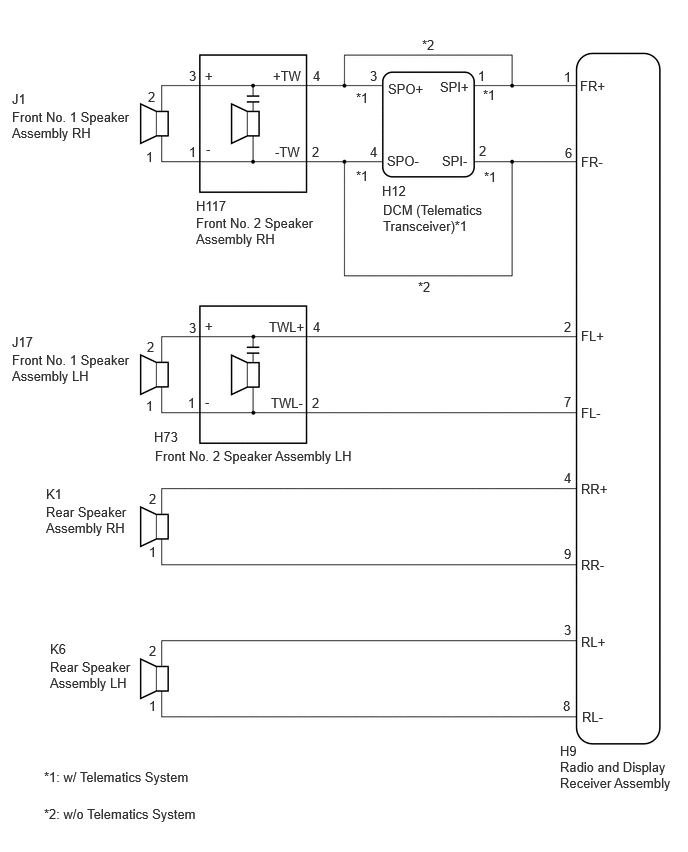

Fig 1: Speaker Circuit [10/2022 - ]

GTY1179858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
