Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [11/2023 - ]: Wiring Diagram

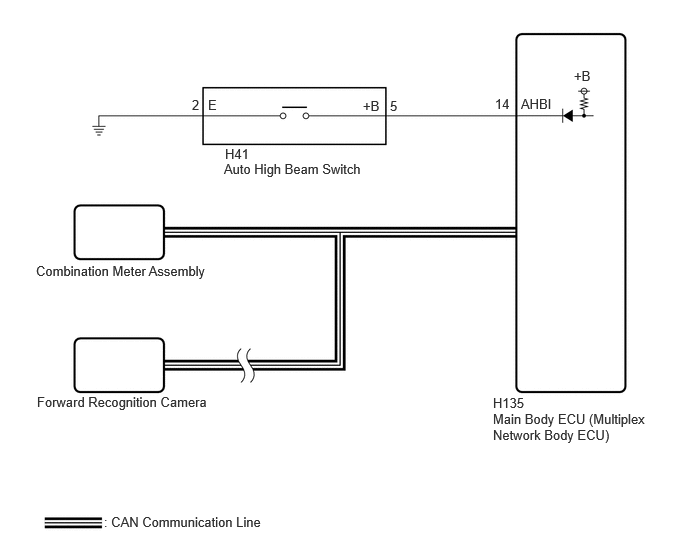

Fig 1: Automatic High Beam System Does Not Operate Or Operation Indicator Does Not Illuminate [11/2023 - ]
GTY1179644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
