Lighting System (W/O AFS) - Diagnostic Codes, Symptom Tests & Circuit Tests (1 Of 2)
>>
LIGHTING SYSTEM (w/o AFS)
>>
Headlight Dimmer Switch Circuit [12/2019 - 11/2023]
>>
Wiring Diagram
Headlight Dimmer Switch Circuit [12/2019 - 11/2023]: Wiring Diagram

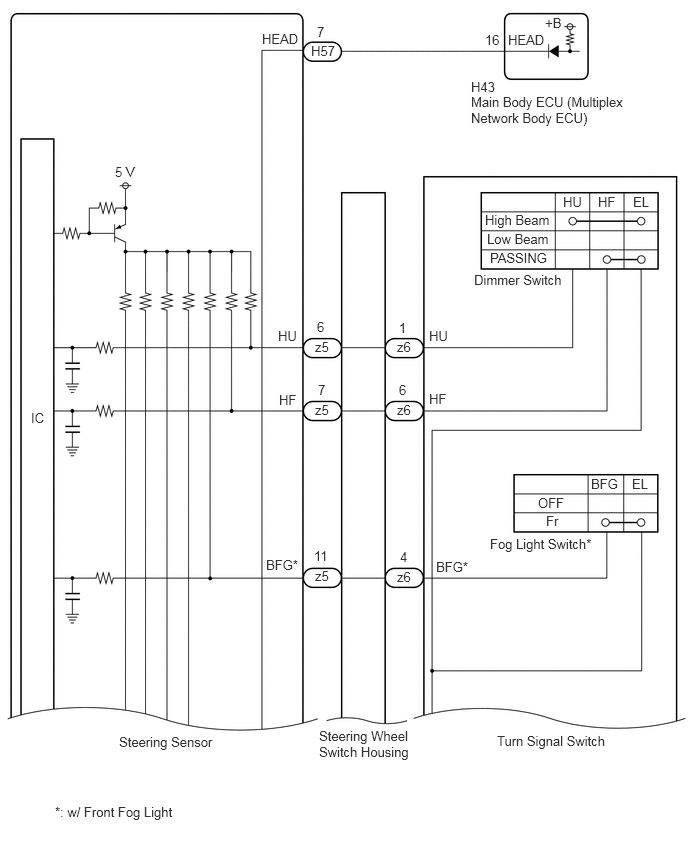

Fig 1: Headlight Dimmer Switch Circuit [12/2019 - 11/2023] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Headlight Dimmer Switch Circuit [12/2019 - 11/2023] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
