Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System (W/O AFS) - Diagnostic Codes, Symptom Tests & Circuit Tests (1 Of 2) >> LIGHTING SYSTEM (w/o AFS) >> Headlight Dimmer Switch Circuit [11/2023 - ] >> Wiring Diagram

Headlight Dimmer Switch Circuit [11/2023 - ]: Wiring Diagram

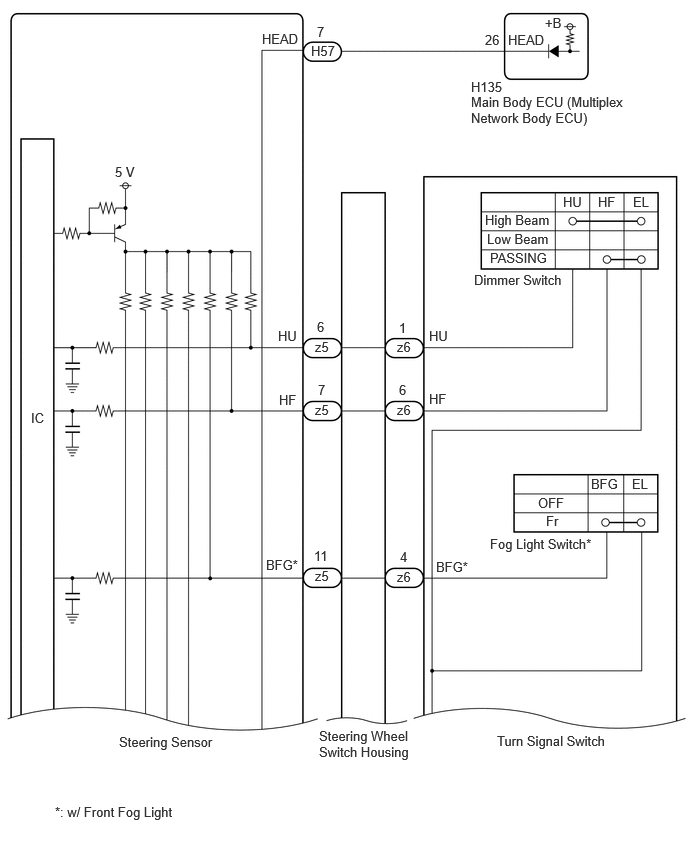

Fig 1: Headlight Dimmer Switch Circuit [11/2023 - ] (1 Of 2)
GTY1178894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Headlight Dimmer Switch Circuit [11/2023 - ] (2 Of 2)
GTY869439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
