Highlander LE, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
Road Sign Assist System - Diagnostics - Introduction
>>
Road Sign Assist System
>>
System Diagram [11/2023 - ]
>>
System Diagram [11/2023 - ]
System Diagram [11/2023 - ]

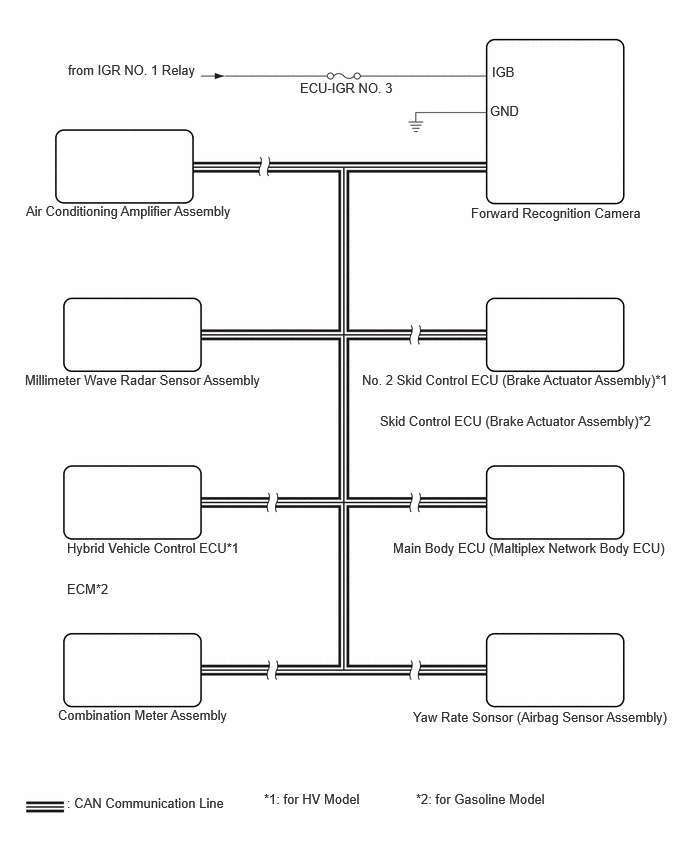

Fig 1: Road Sign Assist System Diagram [11/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOCAL BUS
Fig 2: Local Bus [11/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
