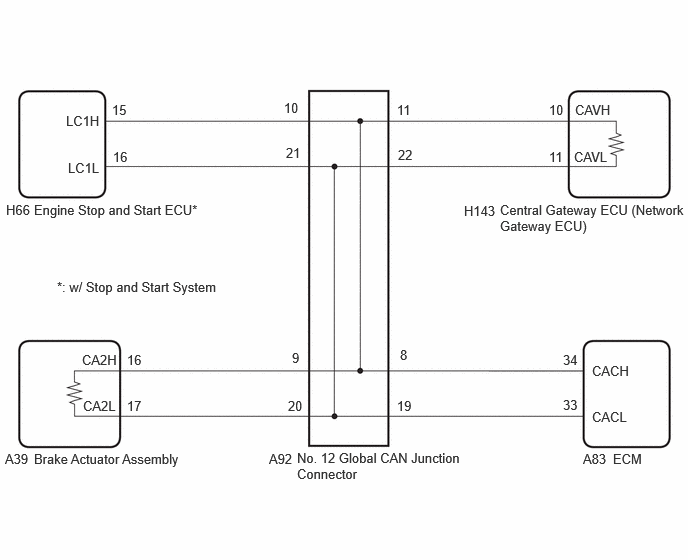

DTC U115C-87: Lost Communication with ECM/PCM "A" (ch5) Missing Message; DTC U1170-87: Lost Communication with Brake System Control Module (ch2) Missing Message [11/2023 - ]: Wiring Diagram

GTY1180364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
