CAN COMMUNICATION SYSTEM (for Gasoline Model)
>>
Check CAN Communication Connection [12/2019 - 11/2023]
>>

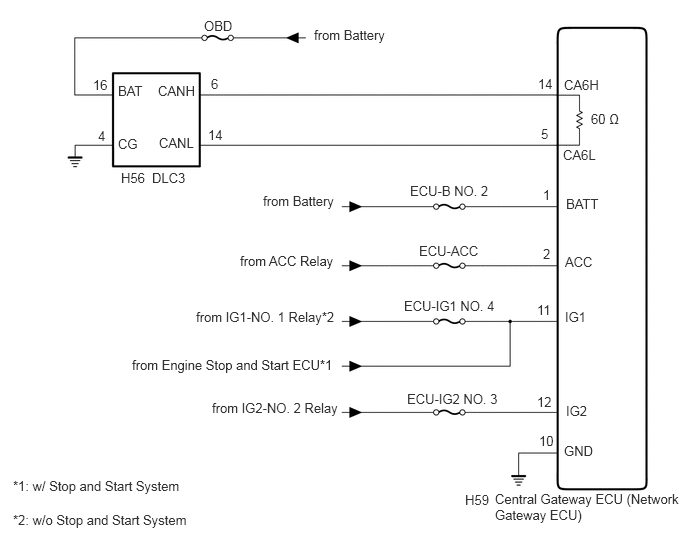

Wiring Diagram
Check CAN Communication Connection [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
