Disassembly [12/2019 - 10/2021]: Procedure

  1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY
    1. Secure the steering column assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

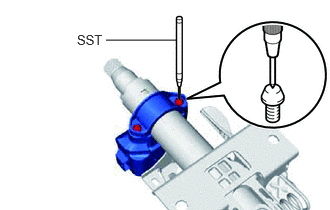

    2. Using SST, strike a punch mark for drilling in the center of the steering lock set bolt.
      GTY864405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09622-00010
      NOTE:

      When striking the punch mark, in order to prevent impact force from being applied to the steering lock actuator assembly, do not use a normal center punch.

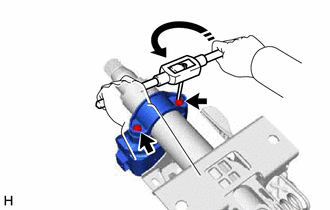

    3. Using a drill, drill a hole in the 2 steering lock set bolts and insert a screw extractor.
    4. Using the screw extractor, remove the 2 steering lock set bolts, upper steering column clamp and steering lock actuator assembly.
      GTY872851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
