Reassembly [12/2019 - 10/2021]: Procedure

  1. INSTALL STEERING LOCK ACTUATOR ASSEMBLY
    NOTE:

    When replacing the steering lock actuator assembly, perform registration.

    1. Secure the steering column assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

    2. Temporarily install the steering lock actuator assembly and upper steering column clamp with 2 new steering lock set bolts.

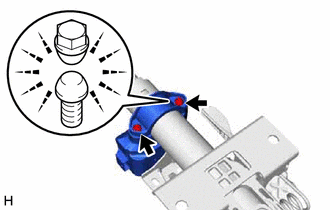

    3. Tighten the 2 steering lock set bolts until the bolt head breaks off.
      GTY872850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
