Installation [10/2022 - 11/2023]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. INSTALL STEERING COLUMN ASSEMBLY
    NOTE:

    Make sure that the wire harness is not interfering with the steering column assembly.

    1. Install the steering column assembly with the bolt and 2 nuts.

      Torque: 36 N.m (367 kgf/cm, 27 ft.lbf)

      NOTE:
      • After temporarily tightening the bolt, fully tighten the 2 nuts then fully tighten the bolt.
      • After the column is installed, check the tilt and telescopic operation.
      • If a large amount of force is required to operate the tilt and telescopic mechanism or abnormal noise occurs, loosen the nuts and move the bracket forward or backward until the tilt and telescopic operation works smoothly.

        Tighten the nuts and check the tilt and telescopic operation again.

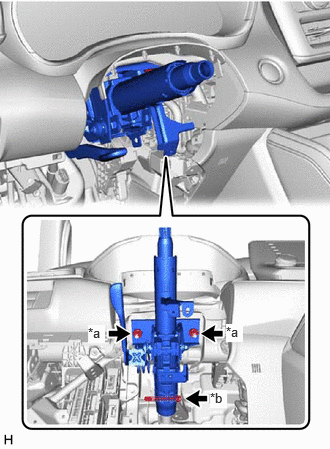

      GTY1113741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
      *b Bolt
    2. Connect each connector and engage each wire harness clamp to the steering column assembly.
  3. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the steering intermediate shaft assembly and steering column assembly.
      GTY876753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      Install in this direction
    2. Install the steering intermediate shaft assembly to the steering column assembly.
    3. Install the bolt.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

    4. Tighten the clamp.
      GTY912784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STEERING COLUMN HOLE COVER
    1. Install the steering column hole cover with the 2 clips.
      GTY942635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the clip.
    3. Return the floor carpet.
  5. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 11

  6. INSTALL FRONT WHEEL LH

    Refer to PROCEDURE - Step 1

  7. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [10/2022 - 11/2023]

  8. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch ON.
    • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
    1. Using pliers, expand the clamp.
      GTY917228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
    2. While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.
    3. Return the clamp to its original position.
    4. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
  9. INSTALL UPPER STEERING COLUMN COVER
    1. GTY912770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 2 claws and 4 clips to connect the upper steering column cover.

    2. Engage the claw to install the upper steering column cover.
      GTY941625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this direction
  10. INSTALL LOWER STEERING COLUMN COVER
    1. Engage the 2 claws to install the lower steering column cover.
      GTY912772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 screws.
      GTY912773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  12. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  13. INSTALL STEERING WHEEL ASSEMBLY

    See step  4

  14. CHECK STEERING WHEEL CENTER POINT
  15. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [10/2022 - 11/2023]

  16. PERFORM INITIALIZATION AND CALIBRATION (for Gasoline Model)

    Refer to CALIBRATION [12/2019 - 11/2023]

  17. PERFORM INITIALIZATION AND CALIBRATION (for HV Model)

    Refer to CALIBRATION [12/2019 - 11/2023]
