Removal [10/2022 - 11/2023]: Procedure

Refer to REMOVAL [10/2022 - 11/2023]

1. Disconnect each connector.

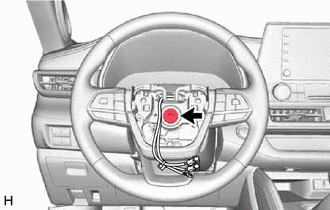

2. Using a 10 mm hexagon socket wrench, remove the steering wheel assembly set bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

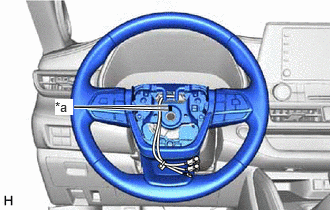

3. Put matchmarks on the steering wheel assembly and steering main shaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

4. Temporarily install the steering wheel assembly set bolt.
   NOTE:

   Do not overtighten the steering wheel assembly set bolt.

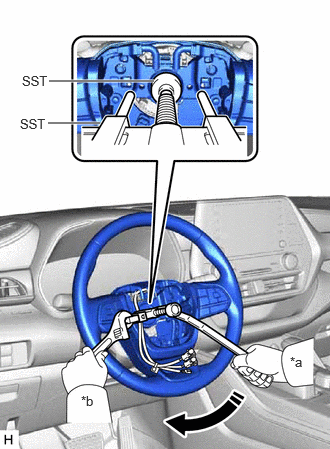

5. Using SST, separate the steering wheel assembly.
   • SST: 09950-50013
     1. 09951-05010
     2. 09952-05010
     3. 09953-05020
     4. 09954-05031
     5. 09957-04010
   • SST: 09950-60010
     1. 09951-00330
   NOTE:

   Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

6. Remove the steering wheel assembly set bolt and steering wheel assembly.

See step  2
