Removal [11/2023 - ]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.

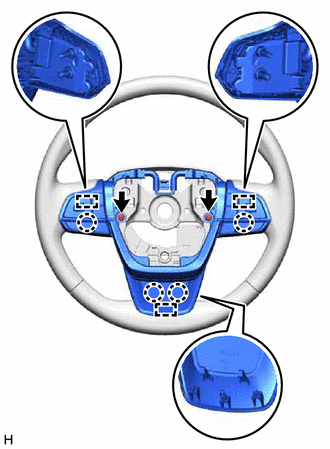

    2. Remove the 2 screws.
      GTY912759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and 3 pins to remove the steering pad switch assembly.
