Parts Location [12/2019 - 10/2022]: Illustration

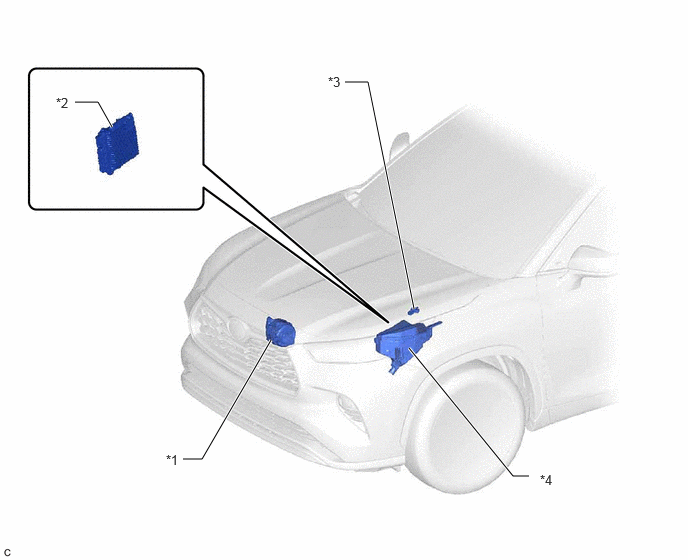

GTY944437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 GENERATOR ASSEMBLY *2 ECM
*3 BATTERY STATE SENSOR ASSEMBLY *4 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

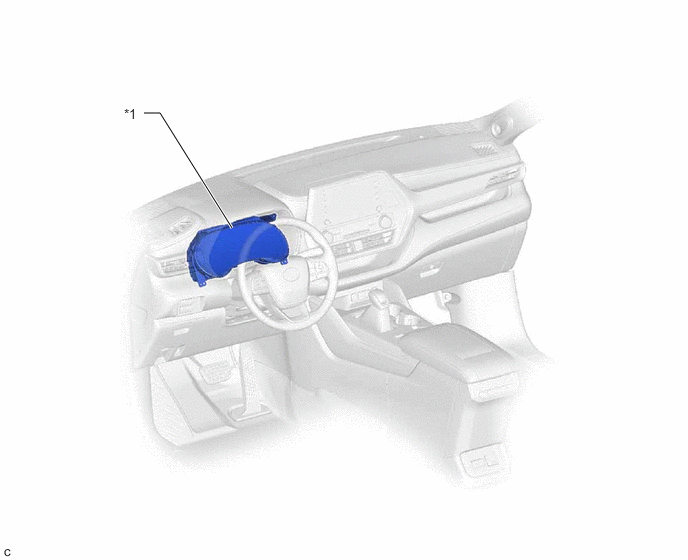

GTY914653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY - -
