Terminals Of ECM [12/2019 - 10/2022]
HINT:

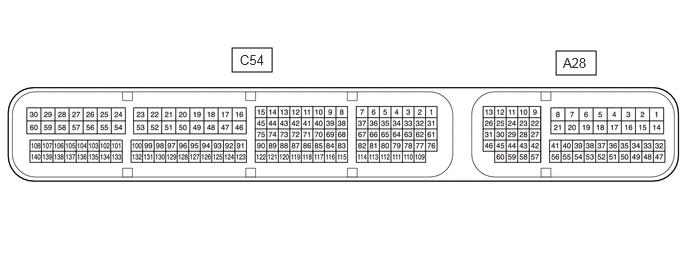

The standard normal voltage between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.
Terminal No. (Symbol) Terminal Description Condition Specified Condition C54-53 (E1) - Body ground Ground Always Below 1 Ω A28-1 (BATT) - C54-53 (E1) Battery (for measuring battery voltage and for ECM memory) Always 11 to 14 V C54-135 (LIN) - Body ground LIN communication line Ignition switch off
(while LIN communication stopped)10 kΩ or higher
