Skid Control ECU Communication Stop Mode [12/2019 - 11/2023]: Procedure

  1. CHECK FOR OPEN IN CAN BUS LINES (BRAKE ACTUATOR ASSEMBLY BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the A39 brake actuator assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A39-27 (CANH) - A39-43 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

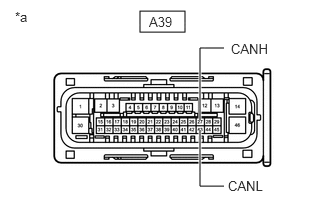

      GTY853805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Brake Actuator Assembly)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (BRAKE ACTUATOR ASSEMBLY)

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (GROUND CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A39-1 (GND1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
      A39-30 (GND2) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω

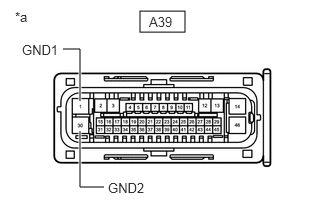

      GTY853806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Brake Actuator Assembly)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (GROUND CIRCUIT)

    Result:

    OK

    See step  3

  3. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Stop and Start System A
      w/o Stop and Start System B

    Result:

    B

    See step  5

    Result:

    A

    See step  4

  4. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Reconnect the cable to the negative (-) battery terminal.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A39-45 (IG1) - Body ground Ignition switch ON 10.5 to 16 V
      A39-46 (BM) - Body ground Always 11 to 14 V
      A39-14 (+BS) - Body ground Always 11 to 14 V

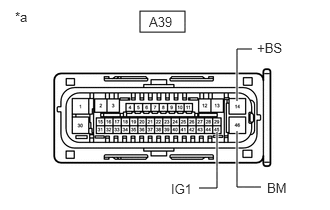

      GTY929633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Brake Actuator Assembly)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    Result:

    NG

    GO TO STOP AND START SYSTEM (FOR BACKUP BOOST CONVERTER CIRCUIT)

    Refer to Backup Boost Converter Circuit [12/2019 - 10/2022] , or refer to Backup Boost Converter Circuit [10/2022 - 11/2023]

  5. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Reconnect the cable to the negative (-) battery terminal.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A39-45 (IG1) - Body ground Ignition switch ON 11 to 14 V
      A39-46 (BM) - Body ground Always 11 to 14 V
      A39-14 (+BS) - Body ground Always 11 to 14 V
      GTY929633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Brake Actuator Assembly)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
