System Diagram [11/2023 - ]

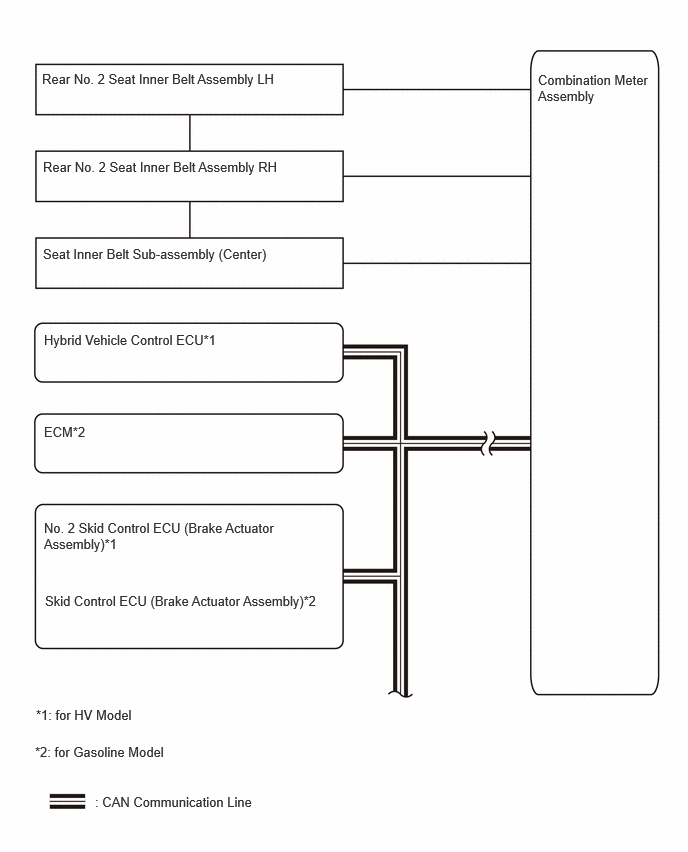

GTY1177958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1177953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

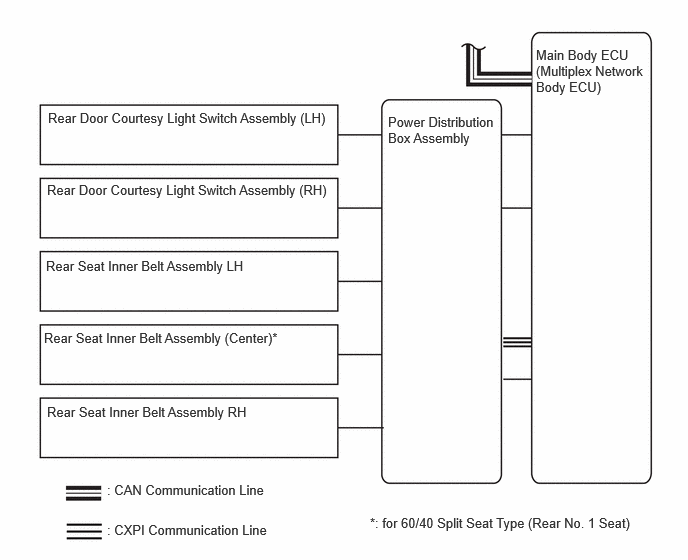

GTY1177664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Communication Method
Airbag sensor assembly Combination meter assembly
  • Front seat inner belt assembly RH buckle switch
  • Front seat inner belt assembly LH buckle switch
  • Occupant detection signal (for passenger side)
 CAN
Main body ECU (Multiplex network body ECU) Combination meter assembly
  • Rear door courtesy light signal (for LH/RH)
  • Rear No. 1 seat inner belt buckle switch
  • No. 2 skid control ECU (brake actuator assembly)*1
  • Skid control ECU (brake actuator assembly)*2
 Combination meter assembly
  • Vehicle speed
  • Parking brake switch
  • Hybrid vehicle control ECU*1
  • ECM*2
 Combination meter assembly Shift position
Power distribution box assembly Main body ECU (multiplex network body ECU) Rear No. 1 seat inner belt buckle switch CXPI
  1. *1: for HV Model
  2. *2: for Gasoline Model
